Antec AX20 Elite Mid Tower Gaming Case
0 Customer Review
Key Features
- Mainboard Support: ATX, Micro-ATX, ITX
- Form Factor: Mid Tower
- Side Panel: Tempered Glass
- 4x 120 RGB fixed fans pre-installed
production_quantity_limits
Out Of Stock
remove
add
Specification
| Brand & Model | ||
| Brands | Antec | |
| Model | AX20 Elite | |
| Details | ||
| Case Type | Mid-Tower | |
| Motherboard Support | ATX, Micro-ATX, ITX | |
| Materials | Steel+Plastic | |
| Side Panel | Tempered glass | |
| Fan Support | Front: 3 x 120mm / 2 x 140mm Top: 2 x 120mm Rear: 1 x 120mm |
|
| Pre-installed Fans | 3 x 120 RGB fixed mode fans in front 1 x 120 RGB fixed mode fan in rear |
|
| Radiator Support | Front: 120 / 140 / 240 / 280mm | |

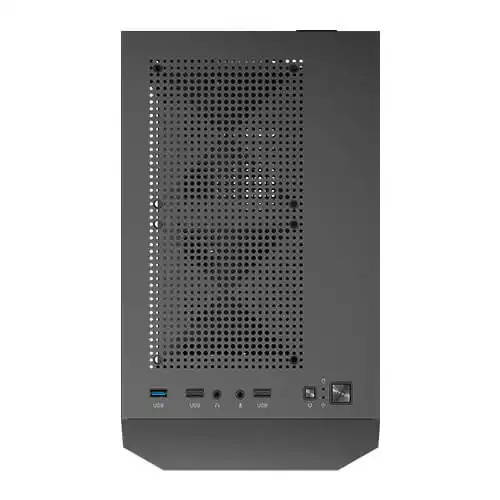

| I/O Port | Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO | |
| Filter | Dust Filter: Front | |
| Expansion & Drive Bay | ||
| Expansion Slots | 7 | |
| Drive Bays | 3.5" /2.5": 2 / 1 2.5": 2 |
|
| Physical Specification | ||
| Dimensions | 358 x 207 x 451 mm (DWH) | |
| Weight | Net Weight: 4.12 Kg Gross Weight: 4.83 Kg |
|
| Clearance Space | ||
| Max GPU Length | ≤ 270mm | |
| Max CPU Cooler Height | ≤ 155mm | |
| Max PSU Length | ≤ 170mm(with HDD) ≤ 295mm(without HDD) |
|
| Warranty Information | ||
| Warranty | No warranty | |
