Description

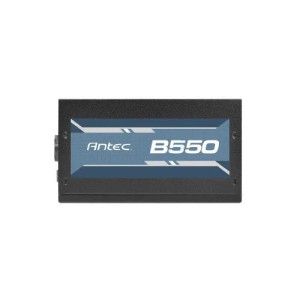

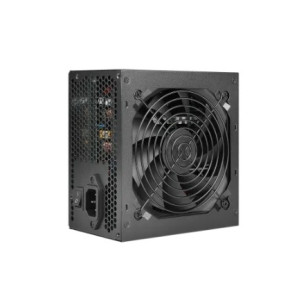

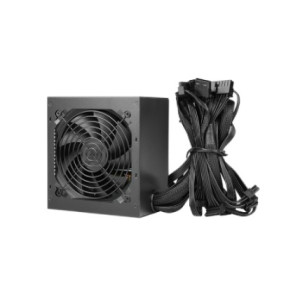

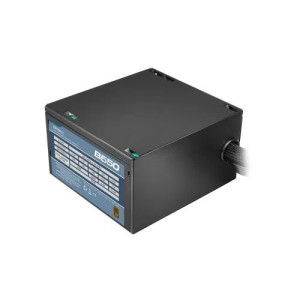

Antec B Series B550 550W 80+ Bronze Non-Modular Power Supply
The Antec B Series B550 550W 80+ Bronze Non-Modular Power Supply is a dependable and efficient choice for most PC projects. Providing dependable performance with crucial safety and thermal management features. With a total output capacity of 550 watts, the Antec B Series B550 550W Power Supply delivers constant power for gaming and productivity systems that employ mid-range graphics cards and CPUs. It has an 80 Plus Bronze efficiency rating, which means reduced power loss and lower electricity bills due to less wasted energy. The Antec B Series B550 550W 80+ Bronze Power Supply features a 120mm silent fan that operates quietly while delivering optimal cooling performance. Antec's unique Thermal Manager technology automatically adjusts fan speed based on system temperature to achieve optimal heat and noise levels. It includes active power factor correction (APFC), which improves power efficiency and lowers power distortion for more consistent performance. Flat wires are included in the Antec B Series B550 550W 80+ Bronze Non-Modular Power Supply, allowing for easier cable routing and improved airflow within the chassis. As a non-modular design, it has all essential cables pre-attached, making it suitable for customers who desire a straightforward installation that does not need modification. CircuitShield, a set of industrial-grade safeguards including Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), and Short Circuit Protection (SCP), shields the power supply and its attached components against electrical failures. Antec B Series B550 550W 80+ Bronze Non-Modular Power Supply comes with 6 years of warranty in Distribution Hub Ltd.
Specification
| Brand & Model | ||
| Brand | Antec | |
| Model | B Series B550 | |
| Details | ||
| Maximum Power | 550W | |
| Fans | 120mm Silent Fan | |
| Input Voltage | 200V-240VAC | |
| Input Current | 6.3A | |
| Frequency | 50Hz | |
| Certification | 80 PLUS Bronze Certified | |
| Others | Modular Type: Non-Modular FLAT Cable Industrial grade protections: OPP/OVP/UVP/SCP Thermal Manager - An advanced fan control for optimal heat & noise management. Active Power Factor Correction (APFC) |
|
| Connectors | ||
| Main Power | 1x 24-pin Main Connectors | |
| CPU | 1 x 8(4+4)pin EPS 12V | |
| PCI-E | 2 x 8(6+2) Pin PCI-E | |
| SATA | 5x SATA | |
| Molex | 3x Molex Connectors | |
| Warranty Information | ||
| Warranty | 6 Years | |
