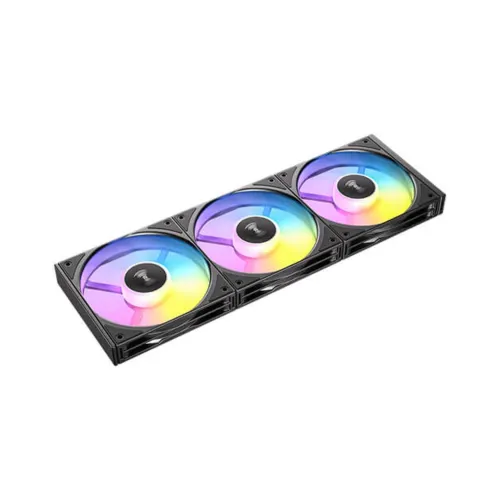

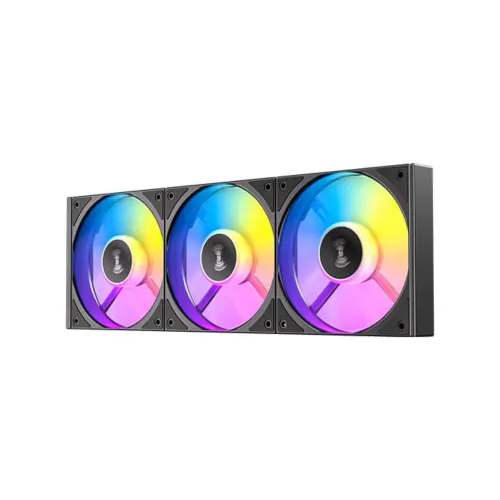

Antec Connect 120 Reverse ARGB (3 in 1 Pack)
Antec Connect 120 Reverse ARGB (3 in 1 Pack)
Antec Connect 120 Reverse ARGB (3 in 1 Pack)
Antec Connect 120 Reverse ARGB (3 in 1 Pack)
Antec Connect 120 Reverse ARGB (3 in 1 Pack)

Antec Connect 120 Reverse ARGB (3 in 1 Pack)

(0) Review
Key Features
  • Fan Type: ARGB PWM Fan
  • Fan Speed: 800RPM± 10% - 1800RPM± 10%
  • Lifespan: 30,000 hours / 25℃
  • Connector: FAN: 4-pin PWM | LED: 3-pin
production_quantity_limits Up Coming
remove add

Description

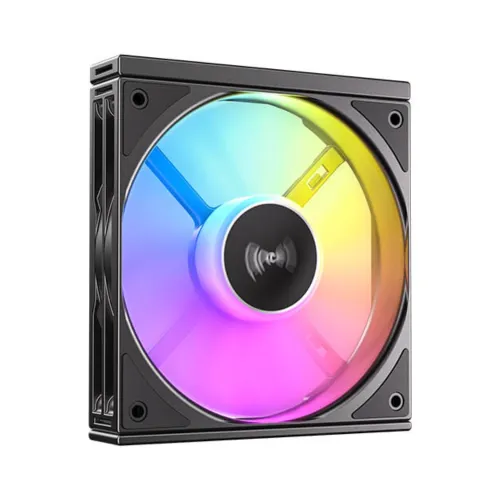

Antec Connect 120 Reverse ARGB

The Antec Connect 120 Reverse ARGB is a 120mm ARGB PWM cooling fan designed for compatible PC cases. It features a reverse-blade design and addressable RGB lighting, making it suitable for customized gaming PC builds. Measuring 120 × 120 × 25mm, this Antec 120mm Reverse ARGB Fan uses a hydraulic bearing and supports adjustable fan speeds from 800 to 1800 RPM, with a ±10% tolerance. It delivers an airflow of 43.2 CFM and an air pressure of 1.29 mmH₂O, with a specified noise level of 27.2 dB(A). The fan has a rated lifespan of 30,000 hours at 25°C. This Antec Reverse ARGB Fan uses a 4-pin PWM connector for fan control and a 3-pin connector for ARGB lighting. The fan operates at 12V DC, while the LED lighting operates at 5V DC. Its rated current is up to 0.12A ±10% for the fan and 0.29A ±10% for the LED. With its white design, reverse-blade configuration, adjustable speed, and RGB lighting, the Antec Connect 120 Reverse ARGB is an option for PC builders planning airflow layouts and lighting effects in compatible desktop systems. Check your motherboard or controller for the required PWM and 5V 3-pin ARGB connections before installation.

Specification

Brand & Model
BrandsAntec
ModelC120R ARGB White
Features
Fan Size120mm
Fan Speed800RPM± 10% - 1800RPM± 10%
Bearing TypeHydraulic Bearing
LED NumberARGB
Lifespan30,000 / hrs 25°C
Noise (dBA)27.2 dB(A)
Air Flow43.2 CFM
Input CurrentFAN: DC 6.0-13.2 V | LED: DC 4.5-5.2 V
Operating Voltage/Power RangeFAN: DC 6.0-13.2 V | LED: DC 4.5-5.2 V
Air Pressure1.29 mmH2O
Physical Specification
ColorBlack
Dimensions120 x 120 x 25 mm

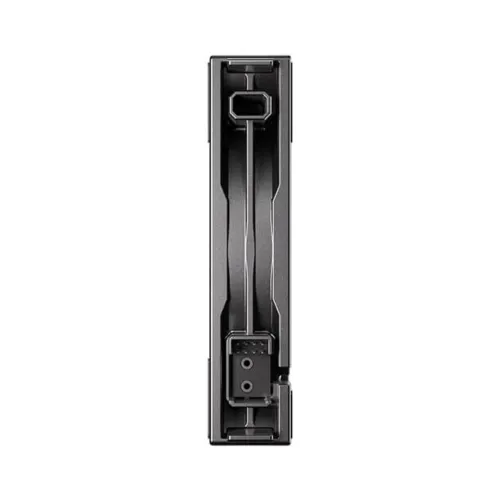

ConnectorFAN: 4-pin PWM | LED: 3-pin
Warranty Information
Warranty1-year warranty
