Description

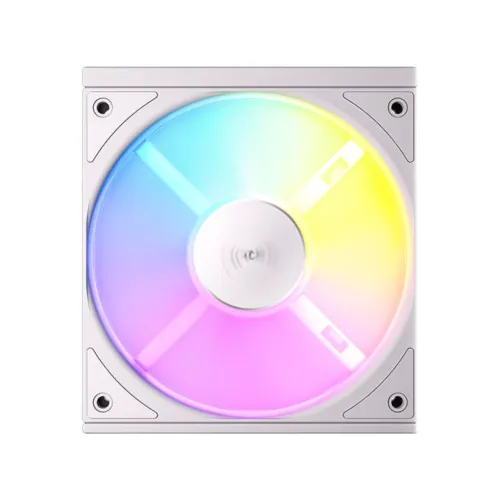

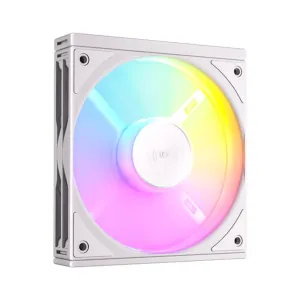

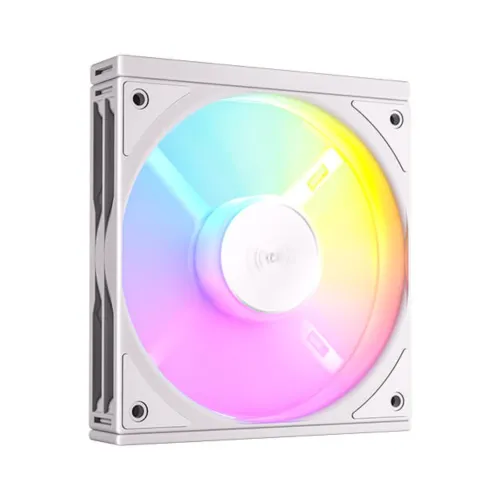

Antec Connect 120 Reverse ARGB White
The Antec Connect 120 Reverse ARGB White is a 120mm ARGB PWM cooling fan designed for compatible PC cases. It features a reverse-blade design and addressable RGB lighting, making it suitable for customized gaming PC builds. Measuring 120 × 120 × 25mm, this Antec 120mm Reverse ARGB Fan uses a hydraulic bearing and supports adjustable fan speeds from 800 to 1800 RPM, with a ±10% tolerance. It delivers an airflow of 43.2 CFM and an air pressure of 1.29 mmH₂O, with a specified noise level of 27.2 dB(A). The fan has a rated lifespan of 30,000 hours at 25°C. This Antec Reverse ARGB Fan uses a 4-pin PWM connector for fan control and a 3-pin connector for ARGB lighting. The fan operates at 12V DC, while the LED lighting operates at 5V DC. Its rated current is up to 0.12A ±10% for the fan and 0.29A ±10% for the LED. With its white design, reverse-blade configuration, adjustable speed, and RGB lighting, the Antec Connect 120 Reverse ARGB White is an option for PC builders planning airflow layouts and lighting effects in compatible desktop systems. Check your motherboard or controller for the required PWM and 5V 3-pin ARGB connections before installation.
Specification
| Brand & Model | ||
| Brands | Antec | |
| Model | C120R ARGB White | |
| Features | ||
| Fan Size | 120mm | |
| Fan Speed | 800RPM± 10% - 1800RPM± 10% | |
| Bearing Type | Hydraulic Bearing | |
| LED Number | ARGB | |
| Lifespan | 30,000 / hrs 25°C | |
| Noise (dBA) | 27.2 dB(A) | |
| Air Flow | 43.2 CFM | |
| Input Current | FAN: DC 6.0-13.2 V | LED: DC 4.5-5.2 V | |
| Operating Voltage/Power Range | FAN: DC 6.0-13.2 V | LED: DC 4.5-5.2 V | |
| Air Pressure | 1.29 mmH2O | |
| Physical Specification | ||
| Color | White | |
| Dimensions | 120 x 120 x 25 mm | |
| Connector | FAN: 4-pin PWM | LED: 3-pin | |
| Warranty Information | ||
| Warranty | 1-year warranty | |
