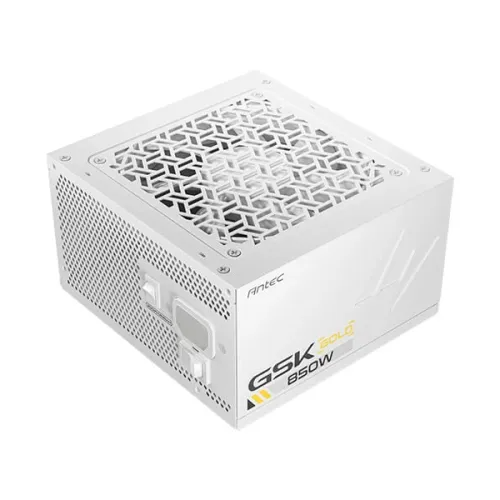

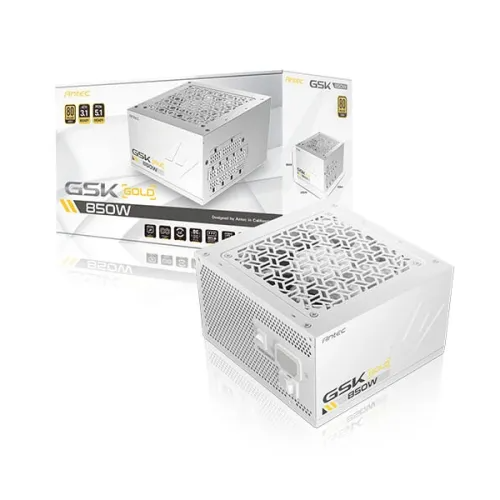

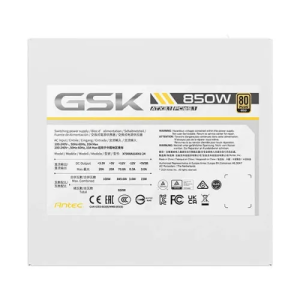

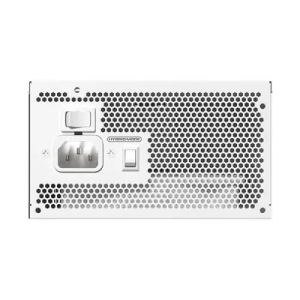

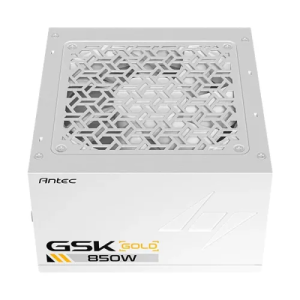

Antec GSK 850W White ATX 3.1 & PCIE 5.1 80+ Gold Full Modular Power Supply
Key Features
- Total Output Capacity: 850W
- Certifications: 80 Plus Gold, 120mm Silent Fan
- Type: ATX 12V 3.1, ATX 3.1 & PCIe 5.1 Compatible
- Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Description
Antec GSK 850W White ATX 3.1 & PCIE 5.1 80+ Gold Full Modular Power Supply
The Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply provides high-end power for gaming and workstation setups. It delivers consistent and efficient power to next-generation GPUs and CPUs, and it fully complies with the most modern ATX 12V 3.1 and PCIe 5.1 standards. It is perfect for complicated systems that demand a high power supply and long-term dependability due to its 850 watt overall output capacity. With its 80 Plus Gold certification, the Antec GSK 850W White ATX 3.1 Full Modular Power Supply ensures high energy efficiency and low power consumption. Because of its totally modular design, users may connect only the connections they need, making cable management easier and boosting airflow. For quiet, efficient cooling, the Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply has a 120mm silent fan that is optimized by sophisticated thermal regulation for steady operation even when under load. It runs at a frequency of 50 Hz to 60 Hz, covers a broad input voltage range of 100V to 240V, and has a maximum input current of 10A. Active Power Factor Correction (APFC), which is integrated into the Antec GSK 850W White ATX 3.1 & PCIe 5.1 80+ Gold Full Modular Power Supply, guarantees cleaner and more dependable power delivery. Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge and Inrush Protection (SIP), and No Load Operation (NLO) are among the extensive industrial-grade safeguards that are included. One 24(20+4) pin motherboard connector, one 16(12+4) pin PCIe 5.1 12VHPWR connector, two 8(4+4) pin CPU connectors, four 6+2 pin PCIe connectors for graphics cards, eight SATA connectors, and four Molex connectors are among the connectivity options available for the Antec GSK 850W White ATX 3.1 Full Modular Power Supply. The Antec GSK 850W White ATX 3.1 Power Supply, certified by international safety standards like as cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, and ICES, combines sleek design, cutting-edge functionality, and superior efficiency for demanding users and contemporary systems. Antec GSK 850W White ATX 3.1 & PCIE 5.1 80+ Gold Full Modular Power Supply comes with 6 years of warranty in Distribution Hub Ltd.
Specification
| Brand & Model | ||
| Brand | Antec | |
| Model | GSK 850W White ATX 3.1 | |
| Details | ||
| Maximum Power | 850W | |
| Fans | 120mm Silent Fan | |
| Input Voltage | 100V-240V | |
| Input Current | 10A Max | |
| Frequency | 50Hz-60Hz | |
| Certification | 80 PLUS GOLD Certified | |
| Others | Modular Type: Full-modular PFC: Active PFC ATX 3.1 & PCIe 5.1 Compatible Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES |
|

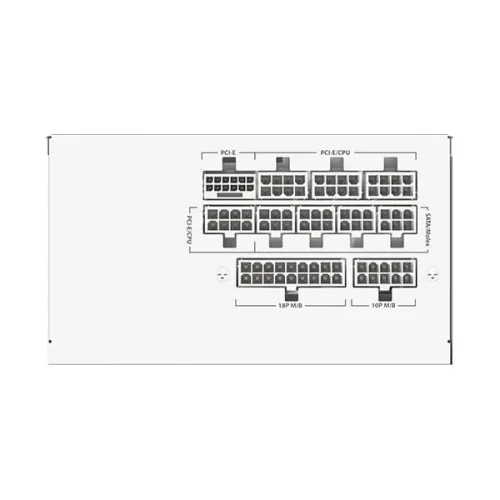

| Connectors | ||
| Main Power | 1 x 24(20+4)pin MB | |
| CPU | 2 x 8(4+4)pin CPU | |
| PCI-E | 1 x 16 (12+4) pin PCIE 5.1 12VHPWR 4 x 8 (6+2) pin PCI-E |
|
| SATA | 8 x SATA | |
| Molex | 4 x Molex | |
| Warranty Information | ||
| Warranty | 10 Years | |
