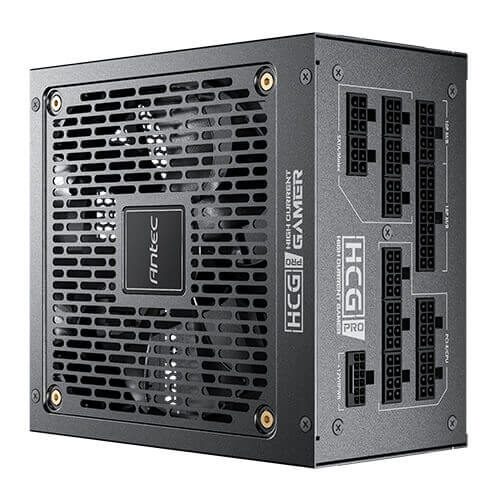

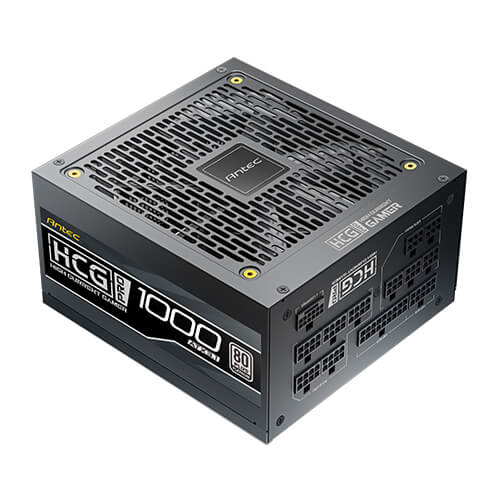

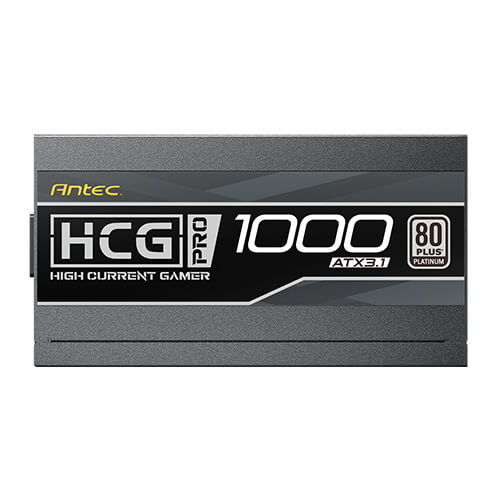

Antec HCG1000 PRO Platinum ATX3.1 1000W 80+ Platinum Full-Modular Power Supply
Key Features
- ATX 3.1 & PCIe 5.1 Compatible
- Output Capacity: 1000W
- Fan: 135mm FDB Silent Fan
- Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Description
Antec HCG1000 PRO Platinum ATX3.1 1000W 80+ Platinum Full-Modular Power Supply
The Antec HCG1000 PRO Platinum ATX3.1 1000W 80+ Platinum Full-Modular Power Supply is a top-tier PSU designed for high-performance gaming and professional PC builds. Offering 850 watts of reliable power with 80+ Platinum certification, it delivers exceptional energy efficiency, reducing heat and electricity costs while maintaining stable power output under heavy loads. The ATX 3.1 standard provides compatibility with the latest hardware, ensuring future-proof support for next-gen components. Its full-modular design enables clean, clutter-free cable management by allowing users to connect only the cables they need, optimizing airflow and enhancing overall system aesthetics. Additionally, it features Japanese capacitors for long-term durability and stable power delivery. Equipped with advanced thermal control and a silent 135mm fan, this PSU ensures quiet operation while effectively dissipating heat. It is an excellent choice for demanding setups where both performance and reliability are critical.
Specification
| Brand & Model | ||
| Brand | Antec | |
| Model | HCG1000 PRO Platinum ATX3.1 |
|
| Details | ||
| Fans | 135mm FDB Silent Fan |
|
| Input Voltage | 100V-240V |
|
| Input Current | 11A-5.5A |
|
| Frequency | 60Hz-50Hz | |
| Output Power | 1000W | |
| Certification | 80 Plus Platinum |
|
| Dimension | 160(L)*150(W)*86(H) | |
| Weight | 3.39kg | |
| Others | PFC: Active PFC Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO Regulatory: cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES/CCC |
|
| Connectors | ||
| Main Power | 1 x 24(20+4)pin MB | |
| CPU | 2 x 8(4+4)pin CPU | |
| PCI-E | 3 x 8(6+2) Pin PCI-E | |
| SATA | 14 x SATA | |
| Molex | 3 x Molex | |
| Warranty Information | ||
| Warranty | 10 years |
|
