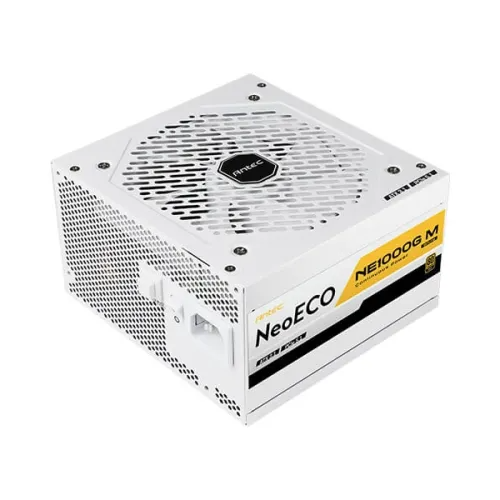

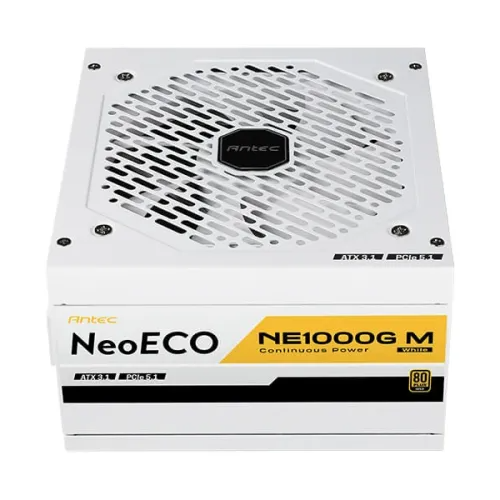

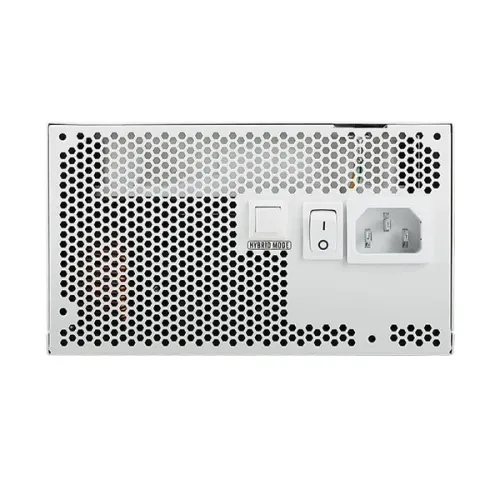

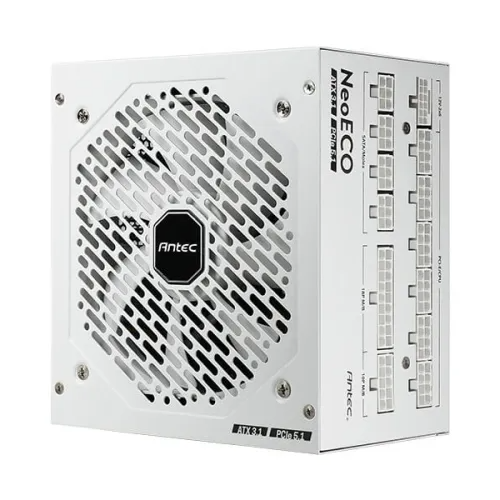

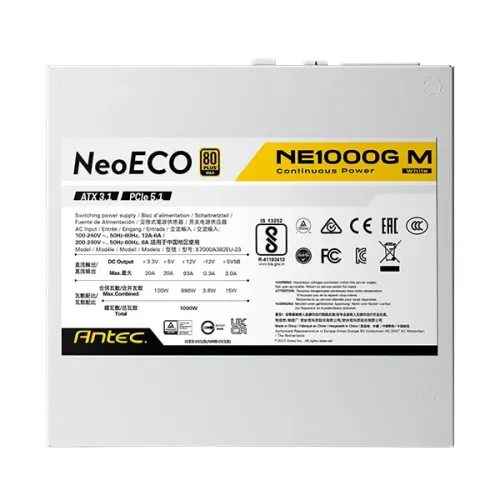

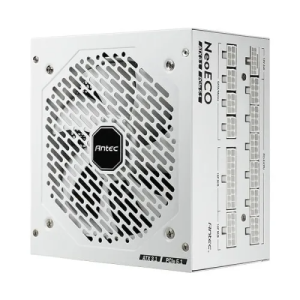

Antec NE1000G M White 1000W ATX 3.0 & PCIE 5.0 80+ Gold Full Modular Power Supply
Key Features
- Total Output Capacity: 1000W
- Certifications: 80 Plus Gold, 120mm FDB Silent Fan
- Type: ATX 12V 3.0, ATX 3.0 & PCIe 5.0 Compatible
- Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Description
Antec NE1000G M White 1000W ATX 3.0 & PCIE 5.0 80+ Gold Full Modular Power Supply
The Antec NE1000G M White 1000W is a high-performance, full-modular power supply designed to deliver reliable and efficient power for modern gaming rigs and workstations. Boasting a total output capacity of 1000W, it is 80 PLUS Gold certified, ensuring over 90% efficiency under typical loads while reducing energy waste and heat generation. Built with ATX 3.0 and PCIe 5.0 compatibility, this PSU is future-ready, supporting the latest hardware standards with features such as a 16-pin PCIE 5.1 12VHPWR connector for next-generation GPUs. The unit employs a 120mm Fluid Dynamic Bearing (FDB) silent fan, offering superior cooling performance with low noise, and operates over a wide input voltage range of 100V–240V at 12A–6A with a frequency of 50Hz–60Hz. For safety and longevity, the NE1000G M White integrates comprehensive protection mechanisms, including OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, and complies with rigorous regulatory certifications such as cTUVus, TUV, CB, RCM, CE, FCC, BIS, BSMI, KC, UKCA, and ICES. The modular design ensures efficient cable management with connectors including 1 x 24(20+4)pin motherboard, 2 x 8(4+4)pin CPU, 1 x 16(12+4)pin PCI-E, 4 x 8(6+2)pin PCI-E, 8 x SATA, and 4 x Molex, making it an ideal choice for high-demand builds seeking both power and precision. Antec NE1000G M White 1000W ATX 3.0 & PCIE 5.0 80+ Gold Full Modular Power Supply comes with 10 years of warranty in Distribution Hub Ltd.
Specification
| Brand & Model | ||
| Brand | Antec | |
| Model | NE1000G M White 1000W ATX 3.0 | |
| Details | ||
| Maximum Power | 1000W | |
| Fans | 120mm FDB Silent Fan | |
| Input Voltage | 100V-240V | |
| Input Current | 12A-6A | |
| Frequency | 50Hz-60Hz | |
| Certification | 80 PLUS GOLD Certified | |
| Others | Modular Type: Full-modular PFC: Active PFC ATX 3.0 & PCIe 5.0 Compatible Power Good Signal: 100-150ms Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO Regulatory: cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
|

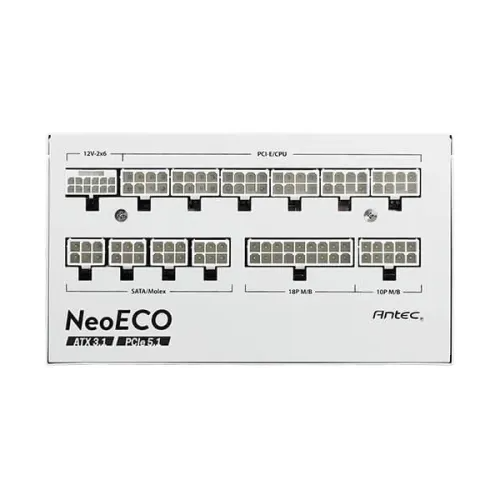

| Connectors | ||
| Main Power | 1 x 24(20+4)pin MB | |
| CPU | 2 x 8(4+4)pin CPU | |
| PCI-E | 1 x 16 (12+4) pin PCIE 5.1 12VHPWR 4 x 8 (6+2) pin PCI-E |
|
| SATA | 8 x SATA | |
| Molex | 4 x Molex | |
| Warranty Information | ||
| Warranty | 10 Years | |
