Description
Antec ST6M ARGB Micro-ATX Mini Tower Casing

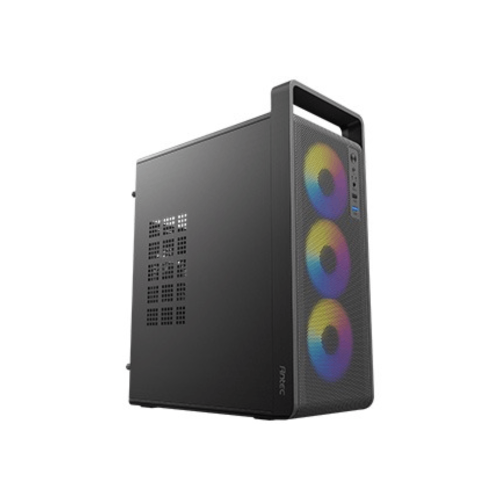

The Antec ST6M Mini Tower is a compact PC case designed for users who want a space‑efficient build with strong hardware support. It is built with a steel and plastic structure that offers durability for everyday use. The solid side panel helps reduce noise and keeps the design clean and simple. This case supports both Micro‑ATX and ITX motherboards, making it suitable for small and budget‑friendly systems. It includes three 90mm ARGB front fans that enhance airflow and create vibrant lighting. A 90mm rear fan is also pre‑installed to improve exhaust performance. Users can install an extra 120mm side fan if more cooling is required. There is also support for an 80mm rear fan to further boost airflow. The front I/O panel offers essential connectivity with a USB 3.0 port, a USB 2.0 port, and MIC/HD‑AUDIO jacks. Power and reset buttons are also included for easy access. Inside the case, users will find four expansion slots for essential upgrades and add‑on components. Storage support includes one 3.5‑inch drive bay and one 2.5‑inch SSD bay. These options allow basic storage setups for gaming, office, or home builds. The case measures 285 × 160 × 380 mm, which makes it easy to fit in tight spaces or on small desks. Its lightweight 1.6 kg body allows simple movement and placement during setup. The compact size still supports GPUs up to 245 mm in length. CPU coolers up to 145 mm in height can be installed without issues. It also supports PSUs up to 245 mm in length, including cable space. The black finish gives the case a clean and modern appearance for any environment. With its balanced airflow, practical connectivity, and efficient internal layout, the Antec ST6M offers strong value for small‑form‑factor builds. It works well for users who want a compact case with reliable cooling and essential hardware support. This design makes the ST6M a smart choice for minimalist setups and small rooms.
Specification
| Brand & Model | ||
| Brands | Antec | |
| Model | ST6M | |
| Details | ||
| Case Type | Mini Tower | |
| Motherboard Support | Micro-ATX, ITX | |
| Materials | Steel + Plastic | |
| Side Panel | Solid Side Panel | |
| Fan Support | Side: 1 x 120mm Rear: 1 x 80mm |
|
| Pre-installed Fans | 3x 90mm ARGB fans in front 1x 90mm regular fan in Rear |
|
| I/O Port | Power, Reset, 1 x USB 3.0 , 1 x USB 2.0 , MIC / HD-AUDIO | |
| Built-in PSU | N/A | |
| Expansion & Drive Bay | ||
| Expansion Slots | 4 | |
| Drive Bays | 3.5″: 1 2.5″: 1 |
|
| Physical Specification | ||
| Color | Black | |
| Dimensions | 285x 160x 380mm | |
| Weight | Net Weight: 1.6 Kgs Gross Weight: 2.1 Kgs |
|
| Clearance Space | ||
| Max GPU Length | ≤ 245mm | |
| Max CPU Cooler Height | ≤ 145mm | |
| Max PSU Length | (Include cable)≤ 245mm |
|
| Warranty Information | ||
| Warranty | No Warranty | |
