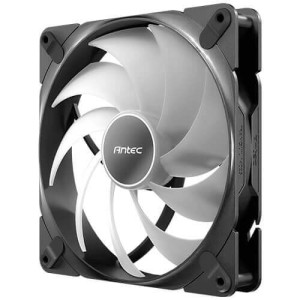

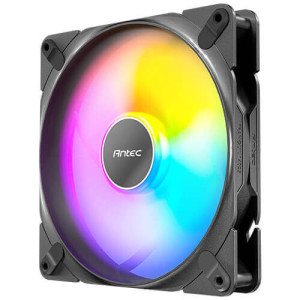

Antec Tranquil 140 ARGB PWM Case Fan
(0) Review
Key Features
- Fan Speed: 450±100~1500±150 RPM
- Airflow: 22.18~89.72 CFM
- Connector: FAN: 4-pin PWM | LED: 3-pin
- Bearing Type: FDB
production_quantity_limits
Out Of Stock
remove
add
Description
Antec Tranquil 140 ARGB PWM Case Fan
The Antec Tranquil 140 PWM Case Fan is designed for efficient cooling with minimal noise. It features fluid dynamic bearings, which reduce friction and extend lifespan, ensuring smooth operation. The nine scythe-shaped fan blades enhance airflow while maintaining stability, and the vibration-absorbing rubber pads help minimize noise.With a PWM daisy-chain design, users can easily synchronize multiple fans for optimized cooling performance. The fan operates at 450–1500 RPM, delivering airflow up to 85.96 CFM and air pressure of 1.79 mmH₂O. Its 4-pin PWM connector allows precise speed control, making it ideal for gaming setups and high-performance builds.
Specification
| Brand & Model | ||
| Brands | Antec | |
| Model | Tranquil 140 ARGB | |
| Features | ||
| Fan Size | PWM Fan | |
| Fan Speed | 450±100~1500±150 RPM | |
| Bearing Type | FDB | |
| Lifespan | 50,000 hours / 25℃ | |
| Noise (dBA) | 18.6~27.5 dB(A) | |
| Air Flow | 22.18~89.72 CFM | |
| Input Current | 0.12 (MAX:0.18) A | LED: 0.30A(MAX) | |
| Operating Voltage/Power Range | DC 7-13.8 V | |
| Air Pressure | 0.14~1.82 mmH₂O | |
| Physical Specification | ||
| Color | Black | |
| Dimensions | 140 x 140 x 25 mm | |
| Connector | 4-pin PWM | LED: 3-pin | |
| Warranty Information | ||
| Warranty | 2 year warranty | |
