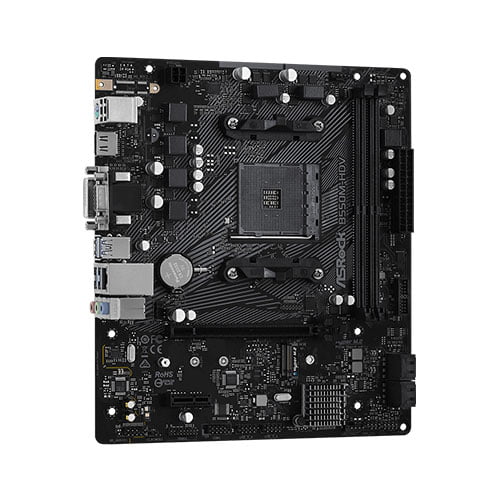

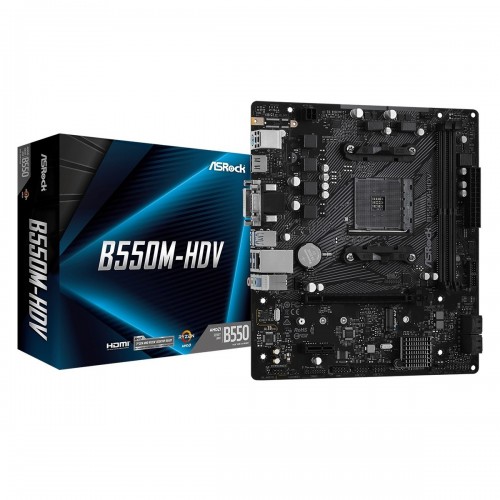

ASRock B550M-HDV DDR4 AMD Motherboard
Key Features
- Supports 3rd Gen AMD AM4 Ryzen/ Future AMD Ryzen Processors
- Supports DDR4 4733+ (OC)
- 4 SATA3, 1 Hyper M.2
- 6 Power Phase Design
Specification
| Brand & Model | ||
| Brand | ASRock | |
| Model | B550M-HDV | |
| Supported CPU | ||
| CPU Type | - Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* - 6 Power Phase design |
|
| Chipsets | ||
| Chipset | - AMD B550 | |
| Memory | ||
| Memory Type | Dual Channel DDR4 Memory Technology | |
| Number of Memory Slots | DDR4 | |
| Supported Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports*** - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft PlayReady |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection |
|
| Expansion Slots | ||
| Expansion Slots | M.2 Socket 1 x Hyper M.2 Socket, supports M Key Type 2242/2260/2280 M. 2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) |
|
| Storage | ||
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug | |
| Network | ||
| LAN | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| BIOS | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
|
| Ports & Connectors | ||
| USB Ports | 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| Form Factor | ||
| Form Factor | - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design |
|
| Others | ||
| Unique Feature | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Warranty | ||
| Warranty | 3 years | |
Description
ASRock B550M-HDV DDR4 AMD Motherboard
The ASRock B550M-HDV features dependable parts and flawless power transmission to the CPU. Moreover, the ASRock B550M-HDV provides expert gamers with unequaled overclocking skills and improved performance while maintaining the lowest temperature. The ASRock B550M-HDV is compatible with PCI Express 4.0 M. With two SSDs, it can function at a speed that is twice as fast as the previous third generation, providing an incredibly quick data transfer experience. The most recent HDMI 4K 60Hz graphics output standard is also included. The animation on your screen becomes smoother and less hazy with the higher frame rate and wider bandwidth. Premium 50-amp power chokes from ASRock efficiently increase the saturation current by up to three times compared to conventional chokes, resulting in increased and improved Vcore voltage for the motherboard. A new enigmatic matte black and copper color palette to go with the high-end motherboards from ASRock. The ASRock B550M-HDV Reduced gaps between PCB layers thanks to the use of high-density glass fabric protect the motherboard against electrical shorts brought on by humidity. containing a D-Sub, DVI-D, and HDMI combination. Furthermore, 4K resolution is supported with the HDMI connector. Power surges can damage some delicate digital components on the motherboard; if there is an overwhelming current, the system could crash right away. Many methods are included in ASRock Complete Spike Protection to guard against the components on motherboards being harmed by these unforeseen voltage spikes. The ASRock Live Update & APP Store was created with the user in mind. offers a variety of applications and assistance programs for consumers to download. The ASRock B550M-HDV DDR4 AMD Motherboard has a 3-year warranty.
