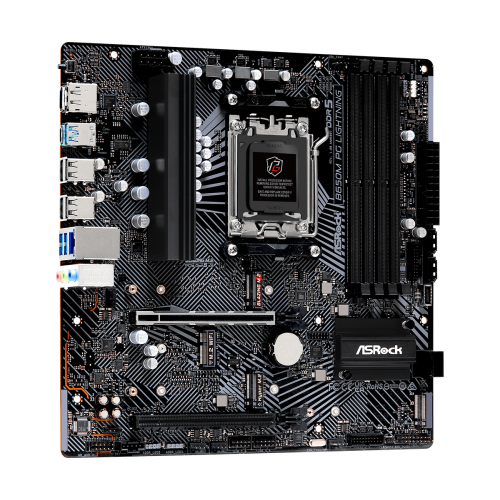

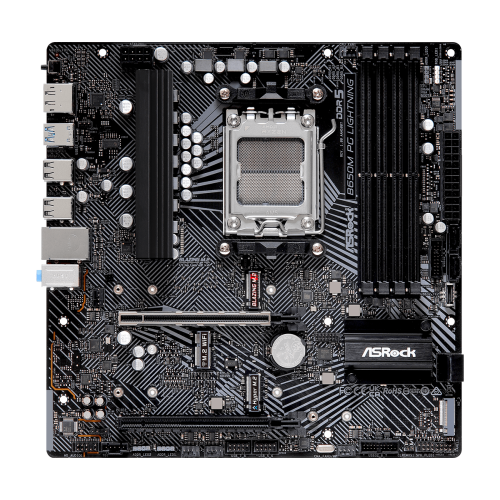

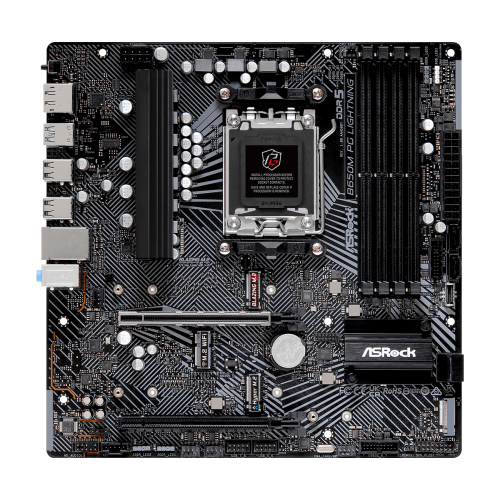

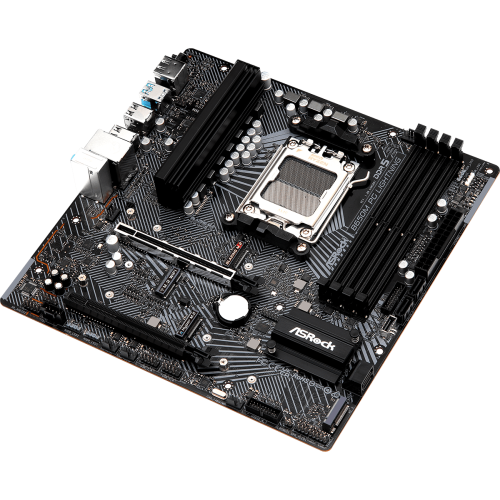

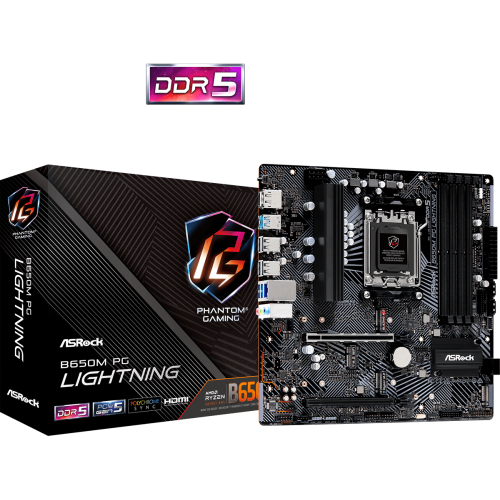

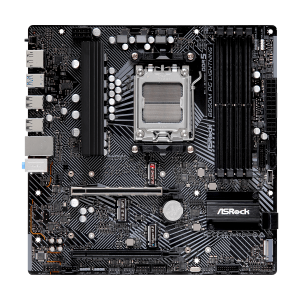

ASRock B650M PG Lightning AMD Motherboard
Key Features
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, 7200 +(OC), Max 256GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Description
ASRock B650M PG Lightning AMD Motherboard
The ASRock B650M PG Lightning AMD Motherboard is designed to meet the highest standards of reliability and performance for consumers with demanding needs. This motherboard guarantees lightning-fast data transfer speeds thanks to the latest PCIe Gen5 M.2 slots, making it ideal for high-performance SSDs. AMD Socket AM5 RyzenTM 9000, 8000, and 7000 Series processors are supported, providing strong compatibility for both present and upcoming builds. For memory-intensive activities, the dual-channel DDR5 memory technology with four DIMM slots is perfect because it supports up to 256GB of DDR5 RAM.The ASRock B650M PG Lightning is built to last with to a 50A Dr. MOS and a 6+2+1 power phase design that guarantees steady power delivery. Fast network rates are offered by the 2.5G LAN, and a variety of USB ports on the motherboard, including USB 3.2 Gen2 and Gen1, guarantee flexible connectivity choices.Features like the ASRock Post Status Checker and the BIOS Flashback Button from EZ Update and EZ Troubleshooter make system administration and diagnosis easier. Additionally, the motherboard has integrated AMD RDNATM graphics, supporting 4K at 120Hz through HDMI 2.1 and DisplayPort 1.4 outputs.The B650M PG Lightning is a strong alternative for professionals and gamers looking for dependable and potent performance in a small Micro ATX form factor. It supports RAID setups, offers sophisticated cooling choices, and comes with ASRock's Phantom Gaming software package.ASRock B650M PG Lightning AMD Motherboard comes with 3 years warranty Distribution Hub Ltd.
Specification
| Supported CPU | ||
| CPU Type | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors | |
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List for more information. |
|
| Number of Memory Slots | 4 | |
| Graphics | ||
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
|
| Storage | ||
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks |
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10 |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| BIOS | ||
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| USB Ports | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection |
|

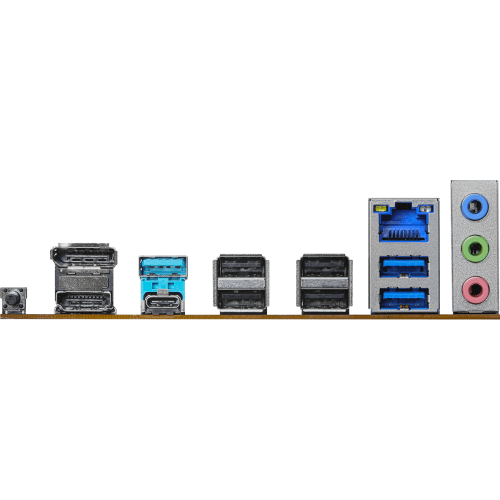

| Rear Panel I/O Ports | - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Form Factor | ||
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | |
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* |
|
| Unique Feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |
