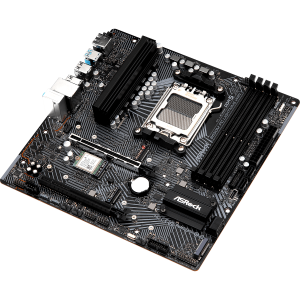

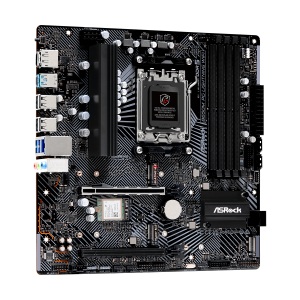

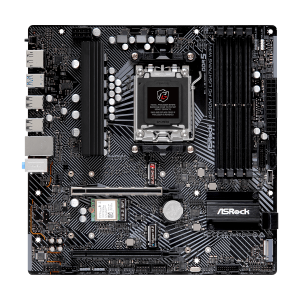

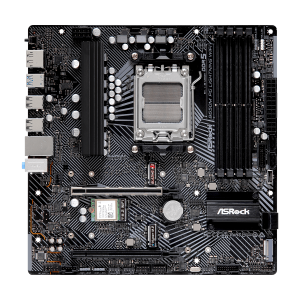

ASRock B650M PG Lightning WiFi AMD Motherboard
Key Features
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, 7200 +(OC), Max 256GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
Description
ASRock B650M PG Lightning WiFi AMD Motherboard
The ASRock B650M PG Lightning WiFi AMD Motherboard is designed for demanding customers who require the best possible connectivity and performance. This motherboard, which supports AMD Socket AM5 RyzenTM 9000, 8000, and 7000 series processors, is designed with the future in mind. It has Dual Channel DDR5 memory technology, supporting overclocking using XMP and EXPO profiles and holding up to 256GB of RAM. For high-speed SSDs, the PCIe Gen5 (M.2) slot is perfect since it guarantees blazing-fast data transfer speeds.With a 50A Dr.MOS and a 6+2+1 power phase architecture that ensures steady and effective power supply, durability is an important characteristic. With 2.5G LAN and 802.11ax Wi-Fi 6E for incredibly fast and dependable internet access, connectivity is unrivaled. In addition, the motherboard has numerous USB ports (USB 3.2 Gen2 Type-C and Type-A), so you have plenty of connectivity choices for all of your accessories.With features like the ASRock Auto Driver Installer and BIOS Flashback Button, which guarantee seamless upgrades and installations, ease of use is given first priority. The ASRock Post Status Checker simplifies troubleshooting. The motherboard's Micro ATX size factor makes it adaptable and user-friendly, fitting neatly into a variety of builds. Power users can rely on the ASRock B650M PG Lightning WiFi AMD Motherboard for powerful performance and features, whether they're using it for gaming, creating content, or everyday work.ASRock B650M PG Lightning WiFi AMD Motherboard comes with 3 years warranty Distribution Hub Ltd.
Specification
| Supported CPU | ||
| CPU Type | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors | |
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List for more information. |
|
| Number of Memory Slots | 4 | |
| Graphics | ||
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
|
| Storage | ||
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks |
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10 |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Bluetooth | Bluetooth 5.2 + High speed class II | |
| BIOS | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| USB Ports | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
|

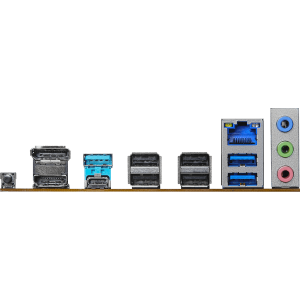

| Rear Panel I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Form Factor | ||
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm | |
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* |
|
| Unique Feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |
