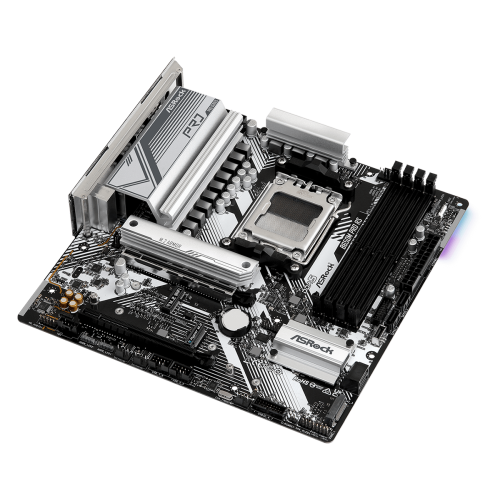

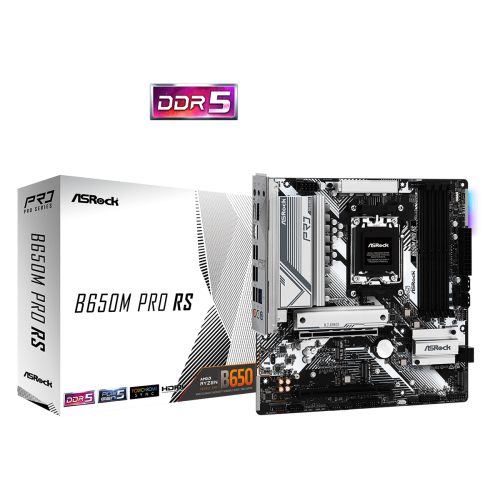

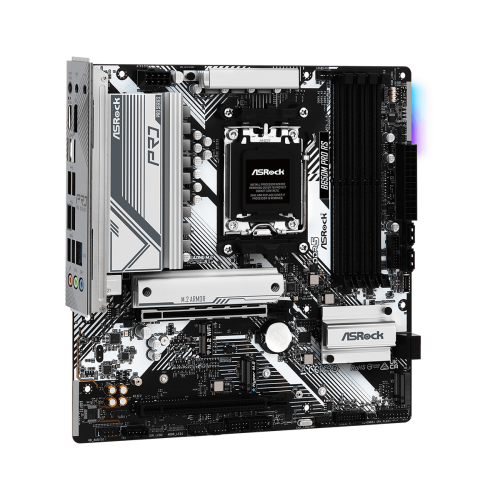

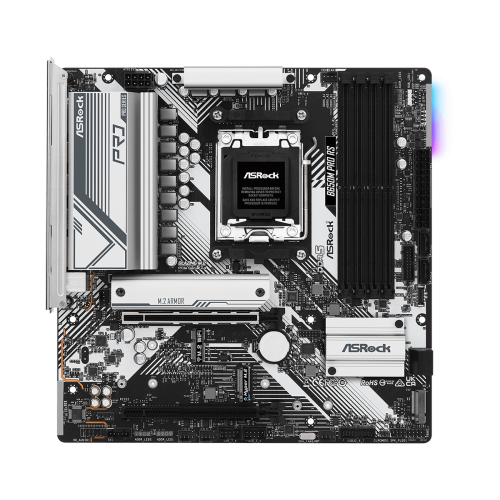

ASRock B650M Pro RS AMD Motherboard
Key Features
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 256GB, 7200+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
Description
ASRock B650M Pro RS AMD Motherboard
The B650M Pro RS AMD Motherboard is made by ASRock for those who demand the best reliability and performance. This motherboard is compatible with AMD RyzenTM 9000, 8000, and 7000 Series processors and guarantees a better processing capacity thanks to its AMD B650 chipset support. Outstanding multitasking capabilities are provided by its dual-channel DDR5 memory technology, which supports up to 256GB at speeds up to 7200+(OC).The ASRock B650M Pro RS provides PCIe Gen5 M.2 slots for enthusiasts and gamers, allowing for lightning-fast storage performance and ultrafast data transfer rates. The 50A Dr. MOS and 8+2+1 Power Phase architecture provide steadfast longevity and steady power delivery. Furthermore, installation and upgrades are hassle-free thanks to the pre-installed I/O shield and EZ Update features like the BIOS Flashback Button.2.5G LAN offers optimal connectivity, guaranteeing a smooth and uninterrupted online experience. Additionally, AMD CrossFireTM for multi-GPU systems is supported by the motherboard, improving rendering and gaming performance. It is perfect for high-definition monitors because the integrated graphics enable up to 4K 120Hz resolution via HDMI 2.1 and DisplayPort 1.4.ASRock's Post Status Checker and extensive fan control simplify system cooling and troubleshooting, resulting in maximum performance and longevity. For builders looking for a motherboard that is both feature-rich and future-proof, the ASRock B650M Pro RS is the best option available.ASRock B650M Pro RS AMD Motherboard comes with 3 years warranty Distribution Hub Ltd.
Specification
| Brand & Model | ||
| Brand | AMD AM5 Ryzen | |
| Series | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors | |
| Supported CPU | ||
| CPU Type | - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
|
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List for more information. |
|
| Graphics | ||
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
|
| Storage | ||
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| BIOS | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| USB Ports | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection |
|

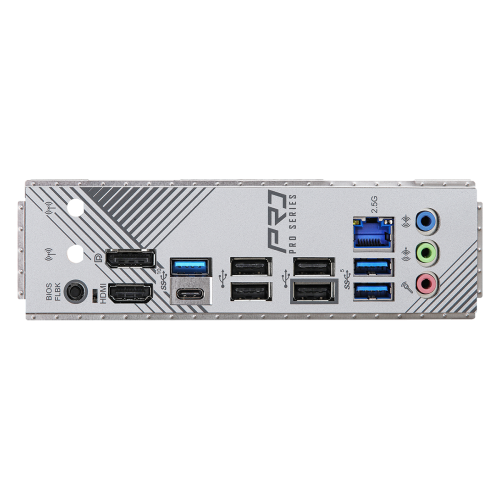

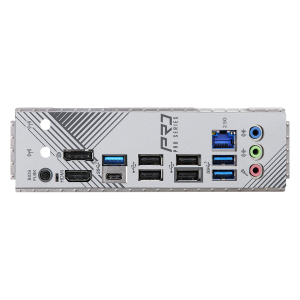

| Rear Panel I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Form Factor | ||
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* |
|
| Unique Feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |
