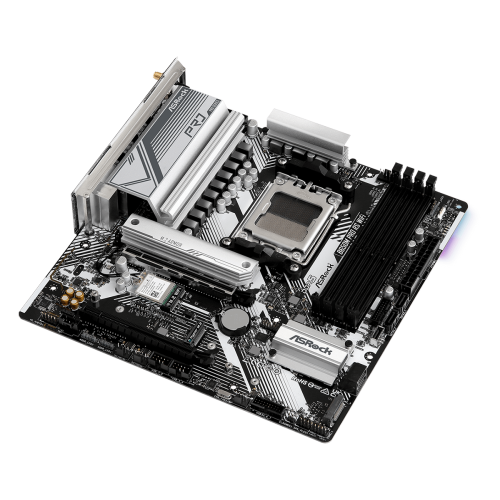

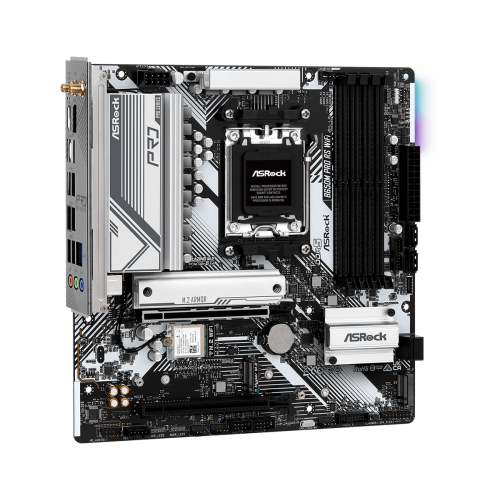

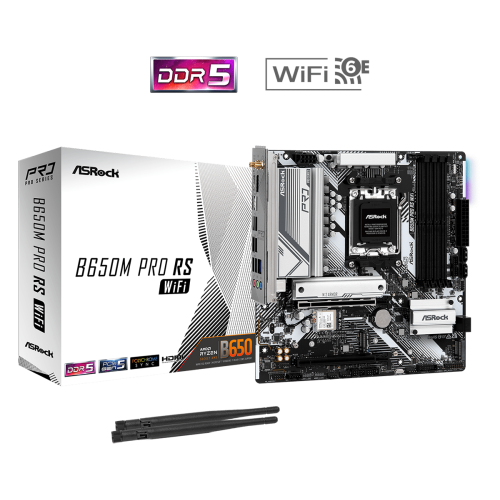

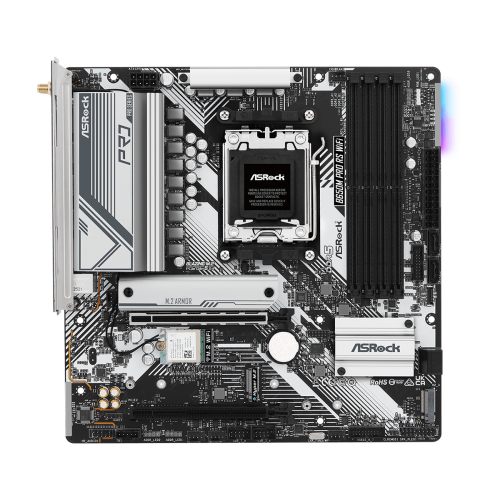

ASRock B650M Pro RS WiFi AMD Motherboard
Key Features
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 256GB, 7200+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
Specification
| Supported CPU | ||
| CPU Type | - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
|
| Chipsets | ||
| Chipset | AMD B650 | |
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
|
| Storage | ||
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless Module | 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO |
|
| BIOS | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| USB Ports | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection |
|

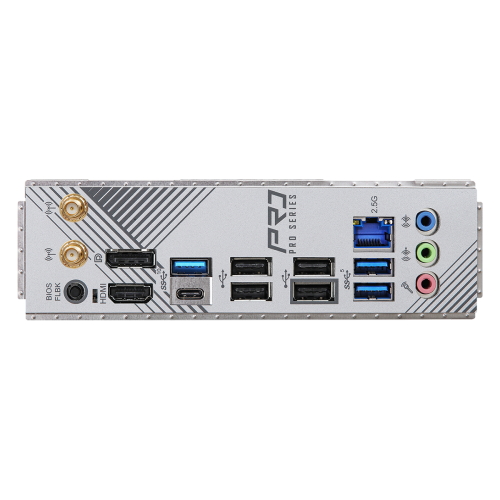

| Internal I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Form Factor | ||
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* |
|
| Unique Feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Warranty | ||
| Warranty | 3 Years | |
Description
ASRock B650M Pro RS WiFi AMD Motherboard
The ASRock B650M Pro RS WiFi AMD Motherboard is built to last a long time and provide exceptional performance. With a PCIe Gen5 M.2 slot and dual-channel DDR5 memory that supports up to 256GB, this compact ATX motherboard is tailored for optimal performance and supports AMD Socket AM5 RyzenTM 9000, 8000, and 7000 series processors. The pre-installed I/O shield facilitates installation, and the 8+2+1 power phase design with 50A Dr.MOS guarantees consistent power delivery.The ASRock B650M Pro RS WiFi boasts an 802.11ax Wi-Fi 6E module and a 2.5G LAN connection for lightning-fast internet speeds and exceptional wireless performance. Additionally, the motherboard contains an EZ Update system that makes system updates simple. It includes an ASRock Auto Driver Installer and a BIOS Flashback Button. With the ASRock Post Status Checker, troubleshooting is simple.This motherboard guarantees fast data transfer speeds because to its several M.2 ports, which support PCIe Gen5 and Gen4 SSDs, and its extensive extension possibilities. Amazing pictures may be seen at up to 4K 120Hz thanks to DisplayPort 1.4, HDMI 2.1, and AMD RDNATM integrated graphics. With interfaces for USB 3.2 Gen2, Gen1, and USB 2.0, the ASRock B650M Pro RS WiFi provides a wide range of connectivity options and can accommodate a number of peripherals.For power users looking for a dependable and feature-rich motherboard, the ASRock B650M Pro RS WiFi offers exceptional performance and connection.ASRock B650M Pro RS WiFi AMD Motherboard comes with 3 years warranty Distribution Hub Ltd.
