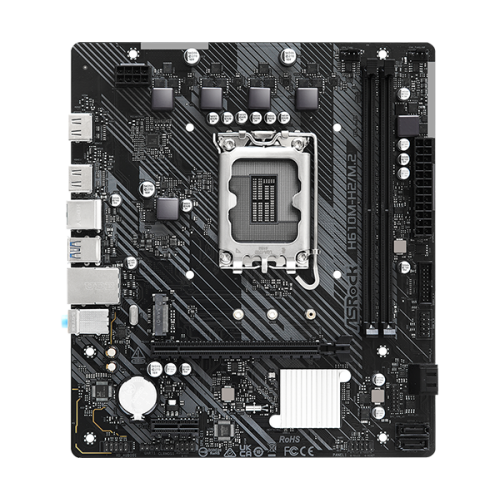

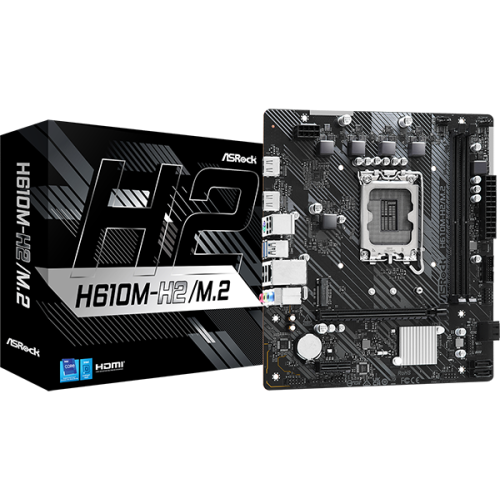

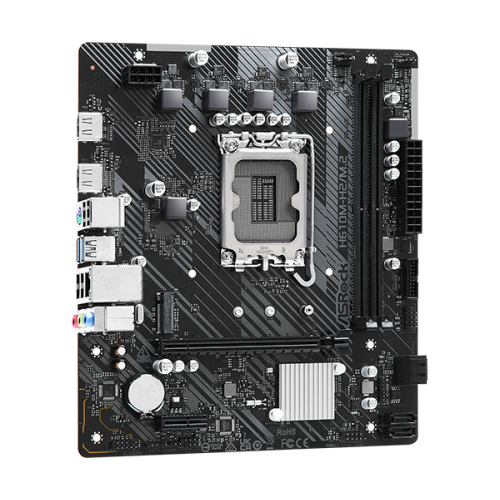

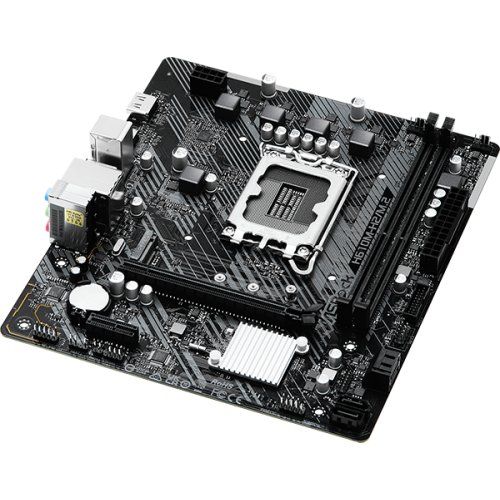

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard
0 Customer Review
Key Features
- Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB 3200mhz+(OC)
- Storage: 1x Ultra M.2, 4 SATA3 6.0Gb/s
- Features: Realtek 1G LAN
production_quantity_limits
Out Of Stock
remove
add
Specification
| Brand & Model | ||
| Brand | Asrock | |
| Model | H610M-H2/M.2 | |
| Supported CPU | ||
| CPU Type | - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
|
| Chipsets | ||
| Chipset | Intel H610 | |
| Memory | ||
| Memory Type | DDR4 | |
| Number of Memory Slots | 2 x DDR4 DIMM Slots | |
| Supported Memory | Supports DDR4 non-ECC, un-buffered memory up to 3200 mhz | |
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| Storage | ||
| Storage | - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | 1 x RJ-45 LAN Port | |
| BIOS | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| USB Ports | - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) |
|
| Internal I/O Ports | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|

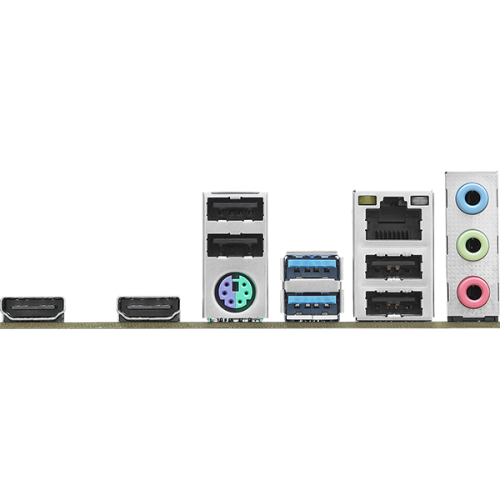

| Rear Panel I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Form Factor | ||
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm | |
| Others | ||
| Bundled Software | - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Warranty | ||
| Warranty | 3 years | |
