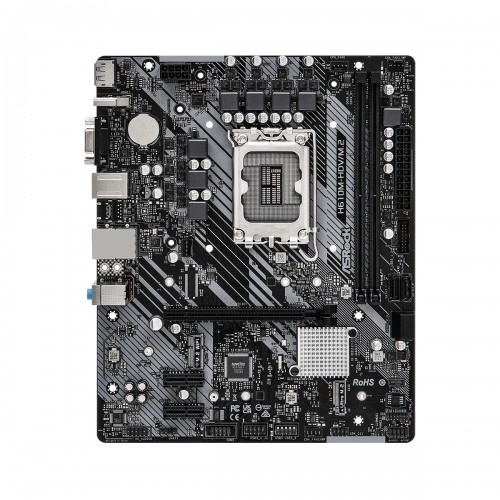

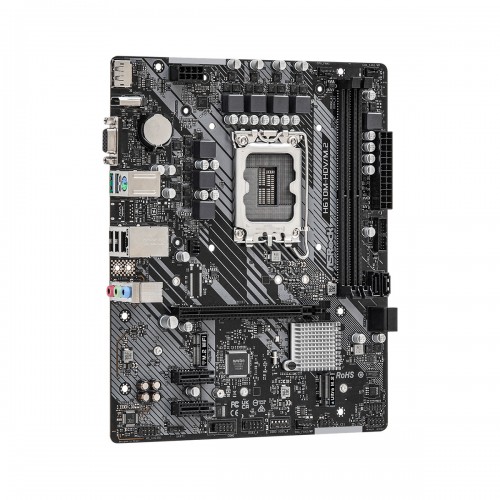

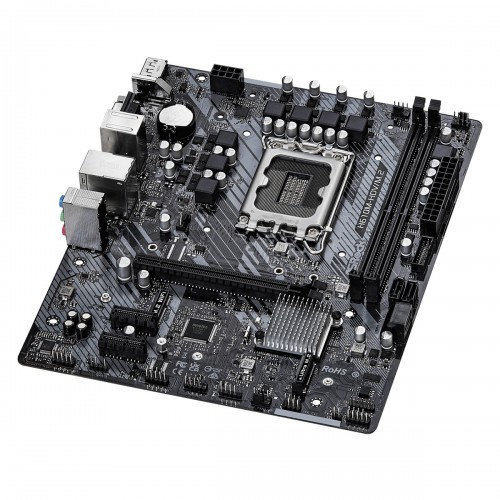

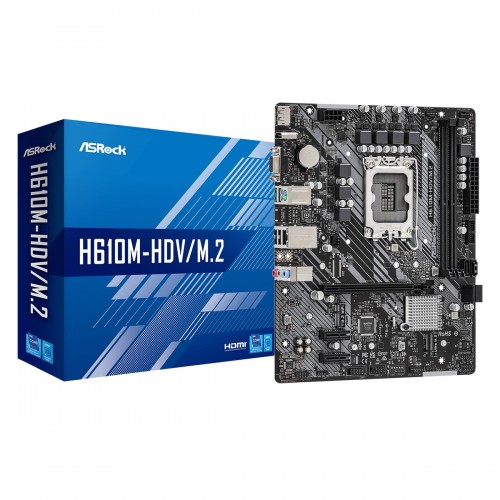

ASRock H610M-HDV/M.2 13th Gen & 12th Gen Micro ATX Motherboard
Key Features
- Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
- 6 Phase Power Design
- Supports DDR4 3200MHz.
- Graphics Output Options: HDMI, DisplayPort, D-Sub
Specification
| Brand & Model | ||
| Brand | ASRock | |
| Model | H610M-HDV/M.2 | |
| Supported CPU | ||
| CPU Type | - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipsets | ||
| Chipset | Intel H610 | |
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM Slots | |
| Maximum Memory | - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Audio | ||
| Audio | - HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Expansion Slots | ||
| Expansion Slots | - 1 x PCIe Gen4x16 Slot - 2 x PCIe Gen3x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module |
|
| Storage | ||
| Storage | - 4 x SATA3 6.0 Gb/s Connectors - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
|
| Network | ||
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
|
| BIOS | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Ports & Connectors | ||
| USB Ports | - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
| Internal I/O Ports | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|

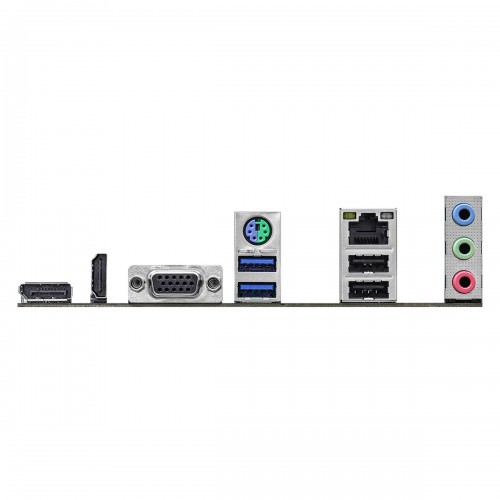

| Rear Panel I/O Ports | 1 x HDMI Port 1 x DisplayPort 1.4 1 x D-Sub Port |
|
| Form Factor | ||
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor design |
|
| Others | ||
| Unique Feature | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Warranty | ||
| Warranty | 3 years | |
Description
ASRock H610M-HDV/M.2 13th Gen & 12th Gen Micro ATX Motherboard
The ASRock H610M-HDV/M.2 Motherboard Supports 13th and 12th Generation Intel Core Processors (LGA1700). The ASRock H610M-HDV/M.2 Motherboard features a six-phase power design, and it supports DDR4 at 3200 MHz. uses a next-generation digital PWM (pulse-width modulation) design, which provides CPU core voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard are greatly enhanced. The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32 Gb/s. In addition, the ASRock H610M-HDV/M.2 Motherboard supports SATA3 6 Gb/s M.2 modules. Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver the ultimate network experience to users. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. It comes with a D-Sub, DisplayPort, and HDMI combo. It supports HDMI 2.1 TMDS compatibility with a maximum resolution of 4K x 2K (4096 x 2160) at 60 Hz. The ASRock H610M-HDV/M.2 Motherboard supports DisplayPort 1.4 with DSC (compressed) maximum resolutions up to 8K (7680x4320) @ 60Hz and 5K (5120x3200) @ 120Hz. D-Sub with max. resolution up to 1920x1200 @ 60Hz. It comes with support for HDCP 2.3, HDMI 2.1 TMDS compatibility, and DisplayPort 1.4 ports. The ASRock H610M-HDV/M.2 Motherboard has a 3-year warranty.
