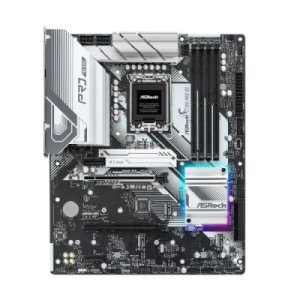

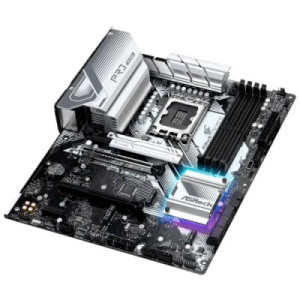

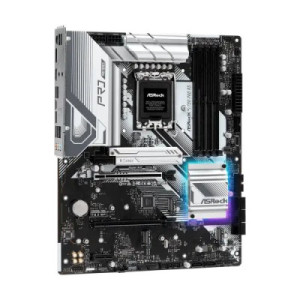

ASRock Z790 Pro RS 14th Gen, 13th Gen & 12th Gen ATX Motherboard
Key Features
- Supported CPU: Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors
- Supported RAM: 4 x DDR5 DIMMs, supports up to 7200+(OC)
- Graphics Output: 1 HDMI, 1 DisplayPort, eDP
- Features: Realtek 2.5G LAN
Description
ASRock Z790 Pro RS 14th Gen, 13th Gen & 12th Gen ATX Motherboard
ASRock Z790 Pro RS motherboard supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700), 14+1+1 Phase Power Design, and Dr.MOS for VCore+GT. It comes with 4 x DDR5 DIMMs and supports up to 6800+ (OC). The ASRock Z790 Pro RS motherboard features 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, and 1 M.2 Key-E for WiFi. It comes with 1 HDMI, 1 DisplayPort, and eDP graphics output options. The ASRock Z790 Pro RS offers 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. This ASRock motherboard also has 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3. It comes with 1 USB 3.2 Gen2x2 Type-C (front), 1 USB 3.2 Gen2 Type-C (rear), 1 USB 3.2 Gen2 Type-A (rear), 6 USB 3.2 Gen1 (2 rear, 4 front), 8 USB 2.0 (4 rear, 4 front), and Realtek 2.5G LAN.
DDR5 XMP & EXPO Support
ASRock doesn't skimp on any elements since its design philosophy is "designed for stability and trustworthiness." By activating the pre-tested profiles, enthusiasts can take advantage of the increased DDR5 memory overclocking performance because the ASRock Z790 Pro RS motherboard is made of low-loss materials. Overclocking can be made inexpensive, pleasant, and completely painless if the RAM modules are Intel® XMP/AMD EXPOTM capable.
PCIe 5.0 + Surface-Mount Tech
The ASRock Z790 Pro RS SMT-type PCIe slot, as opposed to the traditional DIP style PCIe slot, enhances signal flow and maximizes stability at high speeds, a crucial advancement to fully support the lighting speed of the most recent PCIe 5.0 standard. The most recent PCI Express 5.0 is set to unleash the full power of future high-end graphic cards with its astonishing bandwidth of 128 GBps.
High Speed M.2 Solution
The ASRock Z790 Pro RS motherboard can handle several M.2 storage devices, one of which can support a PCI Express 4.0 M.2 SSD. This M.2 SSD can function at a speed that is twice as fast as the previous 3rd generation, providing an incredibly quick data transfer experience. The ASRock Z790 Pro RS 14th Gen, 13th Gen & 12th Gen ATX Motherboards have a 3-year warranty.
Specification
| Brand & Model | ||
| Brand | ASRock | |
| Model | Z790 Pro RS | |
| Supported CPU | ||
| CPU Type | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipsets | ||
| Chipset | Intel Z790 | |
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM Slots | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| Storage | ||
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||

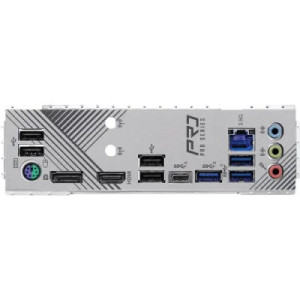

| USB Ports | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
|
| Internal I/O Ports | - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
|
| Form Factor | ||
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|
| Others | ||
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Warranty | ||
| Warranty | 3 years | |
