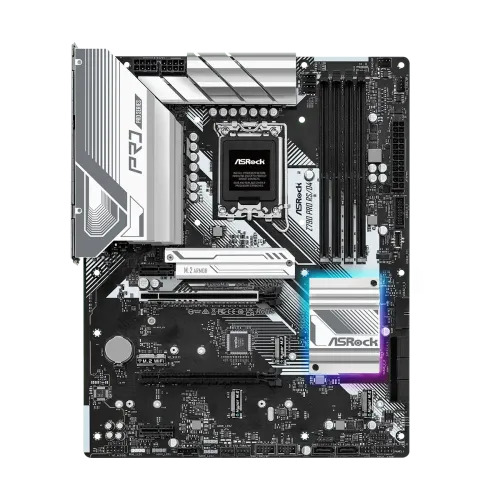

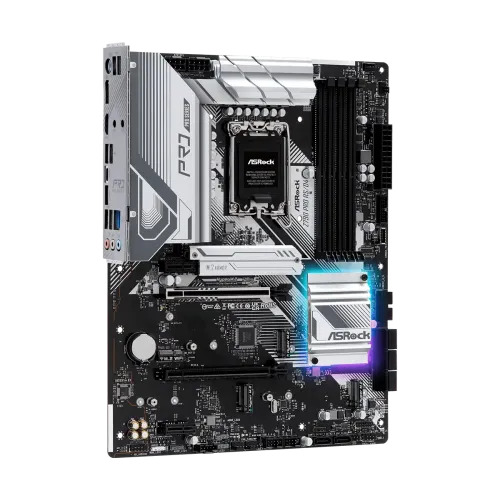

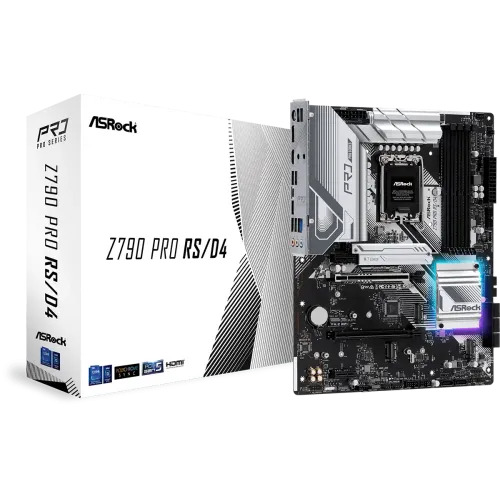

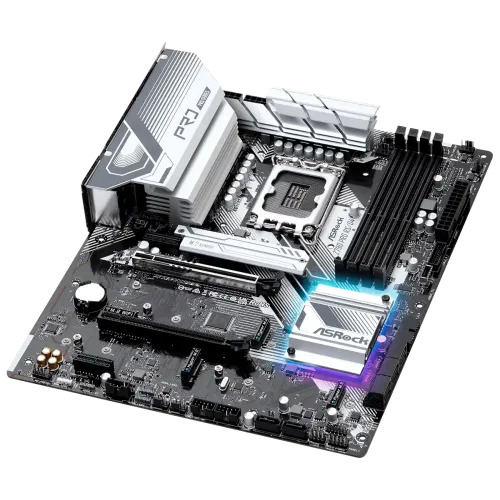

ASRock Z790 Pro RS/D4 14th Gen, 13th Gen & 12th Gen ATX Motherboard
Key Features
- Supported CPU: 14th Gen, 13th Gen & 12th Gen Intel Core Processors
- Supported RAM: 4 x DDR4 DIMMs, supports up to 5333+(OC)
- Graphics Output: 1x HDMI, eDP
- Features: Realtek 2.5G LAN
Description
ASRock Z790 Pro RS/D4 14th Gen, 13th Gen & 12th Gen ATX Motherboard
The ASRock Z790 Pro RS/D4 motherboard supports Intel Core processors from generations 14, 13, and 12, has a 14+1+1 phase power design, and incorporates Dr.MOS for VCore+GT. It has 4 DDR4 DIMMs and can support speeds of up to 5333+ (OC). This motherboard included 1 M.2 Key-E for WiFi, 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, and 3 PCIe 3.0 x1. It has one DisplayPort, one HDMI, and one eDP graphics output option. 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio are features of the ASRock Z790 Pro RS/D4. Moreover, this ASRock motherboard features 8 SATA3 and 4 Hyper M.2 (PCIe Gen4x4). One USB 3.2 Gen2x2 Type-C (front), one USB 3.2 Gen2 Type-C (rear), one USB 3.2 Gen2 Type-A (rear), six USB 3.2 Gen1 (2 rear, four front), eight USB 2.0 (4 rear, four front), and Realtek 2.5G LAN are included. The most recent PCI Express 5.0 is equipped to handle an amazing 128 GBps of bandwidth, ready to unleash the full power of the next generation of high-end graphic cards. The ASRock Z790 Pro RS/D4 13th Gen ATX Motherboard delivers Nahimic Audio through USB, Wi-Fi, analog output, or even HDMI, giving you the most engrossing, vivid, and detailed listening experience. One M.2 storage device on this ASRock Z790 Pro RS/D4 motherboard can handle PCI Express 4.0 M.2 SSD. This 13th-generation ASRock motherboard is also capable of operating at twice the speed compared to the previous 3rd generation, providing an incredibly quick data transmission experience. This motherboard can handle several M.2 storage devices, one of which can support a PCI Express 4.0 M.2 SSD. This M.2 SSD can function at a speed that is twice as fast as the previous 3rd generation, providing an incredibly quick data transfer experience. The ASRock Z790 Pro RS/D4 14th Gen, 13th Gen & 12th Gen ATX Motherboard has a 3-year warranty.
Specification
| Brand & Model | ||
| Brand | ASRock | |
| Model | Z790 Pro RS/D4 | |
| Supported CPU | ||
| CPU Type | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipsets | ||
| Chipset | Intel Z790 | |
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM Slots | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| Storage | ||
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||

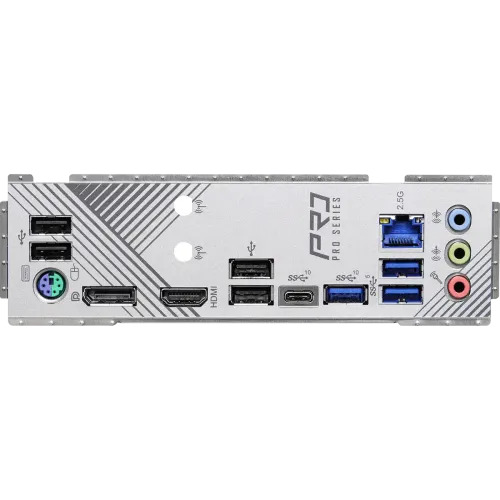

| USB Ports | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
|
| Form Factor | ||
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
|
| Warranty | ||
| Warranty | 3 years | |
