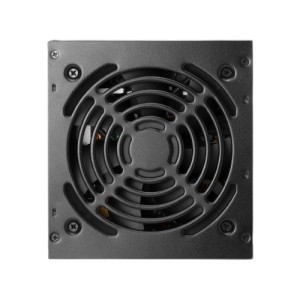

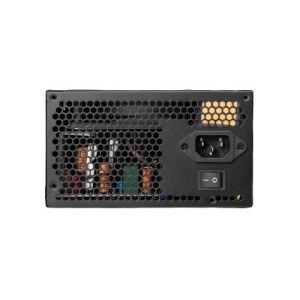

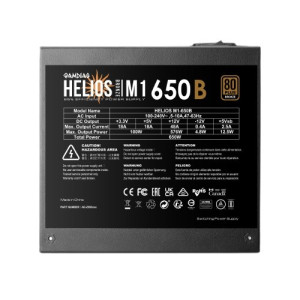

Gamdias HELIOS M1-650B 650W 80 Plus Bronze Power Supply
Key Features
- 650W 80 Plus Bronze
- Deliver up to 85% Efficiency
- Compatible with ATX 12V v2.4
- Support C6/C7 Power State
Description
Gamdias HELIOS M1-650B 650W 80 Plus Bronze Power Supply
The new Gamdias HELIOS M1-650B 650W 80 Plus Bronze Power Supply features an 80 PLUS Bronze certification that guarantees 85% efficiency, and flat black cables for easy installation and cable management. It is also equipped with a 120mm hydraulic bearing smart fan that can adjust the fan speed according to temperature automatically and ensure low-noise operation. Certified with 80 PLUS Bronze, the HELIOS M1-650B delivers stable power output at up to 85% efficiency and reduces energy consumption. The power supply unit features automatic fan speed optimization, which allows the fan speed to be adjusted according to the detection of temperature and load. The 120mm hydraulic bearing fan ensures stable operation and longer lifespan. The flexible black cables are designed for easy cable installation, avoiding clutter, and increase the airflow within the case. Gamdias HELIOS M1-650B 650W 80 Plus Bronze Power Supply comes with 6 years of warranty in Distribution Hub Ltd.
Specification
| Brand & Model | ||
| Brand | Gamdias | |
| Model | HELIOS M1-650B | |
| Details | ||
| Maximum Power | 650W | |
| Fans | 120mm hydraulic bearing fan | |
| Input Voltage | 100-240V | |
| Input Current | 5-10A | |
| Frequency | 47-63Hz | |
| Output Power | 100W / 576W / 4.8W / 12.5W | |
| Efficiency | 85% | |
| Certification | 80 PLUS Bronze | |
| Dimension | 140 x 150 x 86 mm | |
| Others | Protection: OVP / UVP / OPP / OCP / SCP | |
| Connectors | ||
| Main Power | 1 (20+4 Pin) | |
| CPU | 1 (4+4 Pin) | |
| PCI-E | 2 (6+2 Pin) | |
| SATA | 5 (5 Pin) | |
| Molex | 3 (4 Pin) | |
| Warranty Information | ||
| Warranty | 6 years | |
