Gamdias NESO P1 B FULL Tower E-ATX Gaming Casing
Key Features
- MB Support: EATX, ATX, Micro-ATX, Mini-ITX
- 8-Slot Horizontal and Vertical GPU Holder
- Dual-chamber Chassis, GPU Length up to 426mm
- Material: SPCC, ABS and Tempered glass
Description
Gamdias NESO P1 B FULL Tower E-ATX Gaming Casing
The Gamdias NESO P1 B full-tower case features a dual-chamber design and a distinctive trapezoidal form that allows you to showcase your hardware in either horizontal or vertical orientation. Improve your building experience by using the one-touch mechanism to easily remove the glass and gain access to the inside for upgrades and maintenance. The high-end chassis provides robust functionalities and features for enthusiasts, gamers, and professionals who require high-end performance, better build quality, and improved aesthetics. The Gamdias NESO P1 B comes out as a lifestyle case with its distinctive trapezoidal appearance and a sleek grid design from the inside out.
Full Panoramic Display
The Gamdias NESO P1 B is an open, dual-chamber E-ATX case that hides unsightly cables and components while appropriately displaying all of your gear owing to its distinctive trapezoidal shape.
Fan Capacity
The Gamdias NESO P1 B is able to house up to 10 fans, providing a wider range of build customizability for professionals and enthusiasts. A removable top cooling bracket is included in the case to make it simple to attach top-side radiators up to 280 or 360 mm in length.

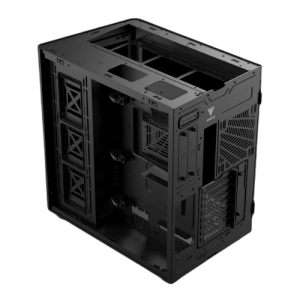

Massive Interior
The Gamdias NESO P1 B is prepared for next-generation configurations and hardware, supporting up to E-ATX motherboards and VGA cards with lengths and widths of 426mm and 192mm, respectively.The hidden compartment is able to accommodate PSUs with lengths up to 180mm. It also comes with an additional SSD bracket, which allows the case to install up to 5 x 2.5" SSD, or up to 2 x 3.5" HDDs.
Excellent Cable Management
The Gamdias NESO P1 B case's hidden compartment is 90mm deep, allowing for ample cable management as well as a well-designed cable routing system with included velcro straps for a superb building experience. The Gamdias NESO P1 B Full Tower E-ATX Gaming Casing has no warranty.
Specification
| Brand & Model | ||
| Brands | Gamdias | |
| Model | NESO P1 B | |
| Details | ||
| Case Type | FULL Tower | |
| Motherboard Support | EATX, ATX, Micro-ATX, Mini-ITX | |
| Materials | SPCC & ABS & Tempered glass | |
| Side Panel | Panoramic Tempered Glass | |
| Fan Support | Top: 3 x 120mm, 2 x 140mm / Side: 3 x 120mm, 3 x 140mm / Rear: 1 x 120mm / Bottom: 3 x 120mm | |
| Radiator Support | Top: 360mm, 280mm / Side: 360mm, 420mm / Rear: 120mm | |
| I/O Port | USB 3.0 x2, Type C x 1, HD Audio x1 | |
| Others | Synchronization: 5V 3-Pin Addressable Header | |
| Expansion & Drive Bay | ||
| Expansion Slots | 8 | |
| Drive Bays | 2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage) 2 x 2.5"(HDD Cage) + 3 x 2.5'' (SSD Bracket) |
|
| Physical Specification | ||
| Color | Black | |
| Dimensions | 490 x 310 x 495 mm | |
| Weight | 11.97 kg / 26.38 lb | |
| Clearance Space | ||
| Max GPU Length | 426mm | |
| Max CPU Cooler Height | 192mm | |
| Max PSU Length | 180mm | |
| Warranty Information | ||
| Warranty | No | |
