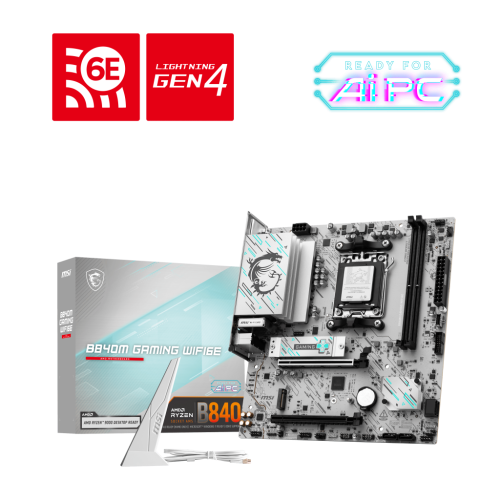

MSI B840M GAMING WIFI6E AM5 mATX Motherboard
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 8000 (OC) MT/s
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
19,400 ৳
Description
MSI B840M GAMING WIFI6E AM5 mATX Motherboard
The MSI B840M GAMING WIFI6E is a high-performance micro-ATX motherboard designed to unleash the full potential of the latest AMD Ryzen 9000, 8000, and 7000 Series processors with its advanced AM5 socket and AMD B840 chipset. Built for speed, the MSI B840M GAMING WIFI6E Motherboard supports up to 128GB of DDR5 memory across two DIMM slots with speeds up to 8000+ MT/s (OC), thanks to AMD EXPO support, dual-channel architecture, and clock driver bypass mode. This motherboard delivers crisp 4K visuals via its HDMI 2.1 and DisplayPort 1.4 outputs, making it a great choice for gamers and content creators alike. With Realtek ALC897 7.1-channel HD audio, users experience immersive sound for games and multimedia. The MSI B840M Motherboard comes equipped with two PCIe x16 slots, including one PCIe 4.0 slot directly from the CPU to handle powerful graphics cards or expansion devices. Storage is fast and flexible with dual PCIe 4.0 x4 M.2 slots and four SATA 6Gbps ports, supporting RAID 0, 1, and 10 configurations. For ultra-fast networking, it features Realtek 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3, ensuring low latency and wide compatibility. Connectivity is robust with multiple USB options including USB 5Gbps Type-A and Type-C ports, both front and rear, and extensive internal I/O headers like 3x ARGB connectors, EZ Debug LEDs, and TPM 2.0 support. Measuring 226mm x 243.84mm, the compact MSI B840M GAMING WIFI6E fits easily into small builds while delivering elite performance and modern features, making it a top-tier option for anyone building an AM5 gaming or workstation PC.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | B840M GAMING WIFI6E | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B840 | |
| Memory | ||
| Memory Type | DDR5 UDIMM | |
| Number of Memory Slots | 2 | |
| Supported Memory | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Network | ||
| LAN | Realtek 8125D 2.5G LAN | |
| Wireless Module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA | |
| Ports & Connectors | ||
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | mATX 226mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 years | |
