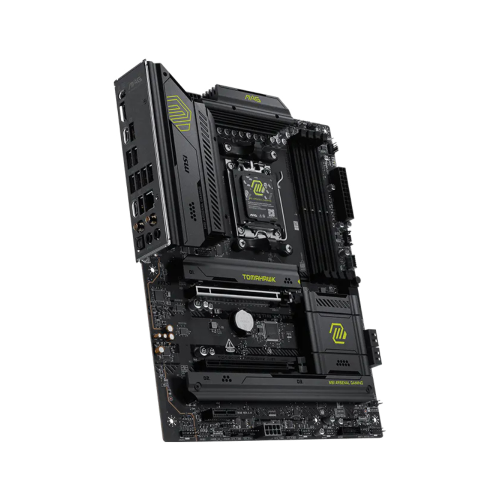

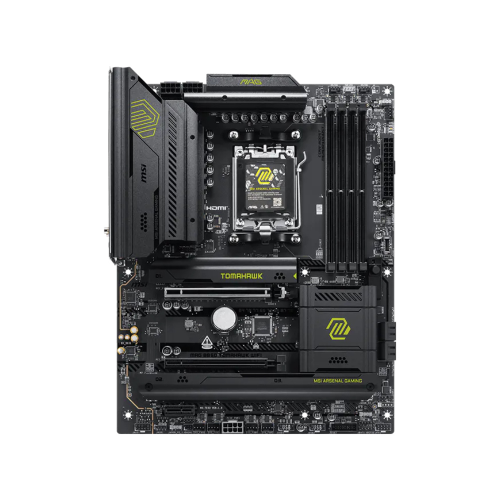

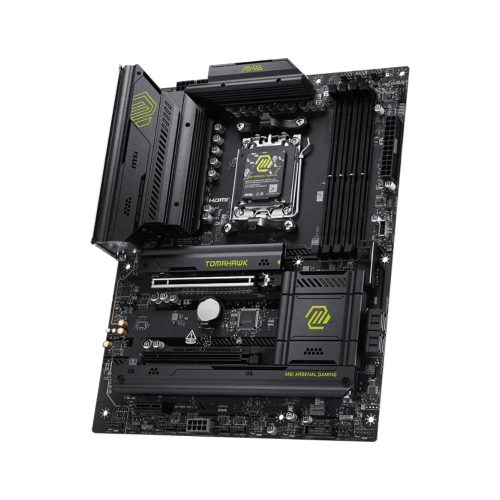

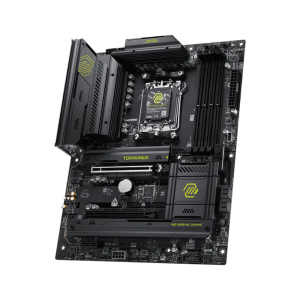

MSI MAG B850 TOMAHAWK WIFI AM5 ATX Motherboard
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
- Graphics Output: 1x HDMI, Storage: 3x M.2
- Features: Realtek 8126-VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Description
MSI MAG B850 TOMAHAWK WIFI AM5 ATX Motherboard

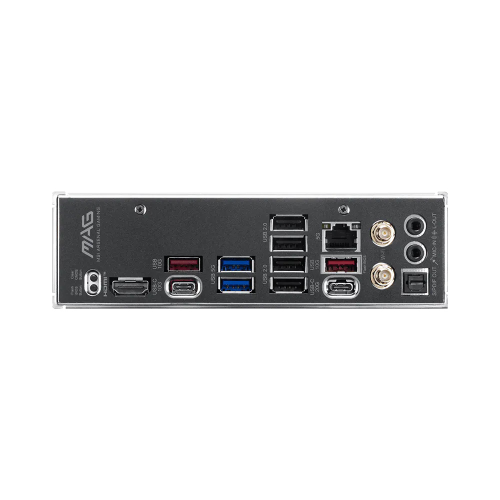

The MSI MAG B850 TOMAHAWK WIFI is an ATX motherboard designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors. It uses the AMD B850 chipset with an AM5 socket for modern desktop builds. Four DDR5 UDIMM slots support up to 256GB of memory. Supported speeds reach 8200+ MT/s through overclocking with compatible Ryzen 9000 processors. AMD EXPO™ and dual-channel memory support help optimize system performance. The board includes two PCIe x16 slots and one PCIe x1 slot for expansion. Its primary PCIe slot supports PCIe 5.0 x16 with supported Ryzen 9000 and 7000 processors. Storage options include three M.2 slots and four SATA 6G connectors. The main M.2 slot supports PCIe 5.0 x4 for compatible Ryzen processors. RAID 0 and RAID 1 are supported for M.2 NVMe storage devices. Networking features include 5G LAN and integrated Wi-Fi 7 connectivity. Wi-Fi 7 supports 2.4GHz, 5GHz, and 6GHz bands with speeds up to 2.9Gbps. Bluetooth 5.4 support adds convenient wireless connectivity for compatible devices. Audio is powered by the Realtek ALC4080 codec with 7.1-channel USB high-performance audio. The rear panel provides USB 20Gbps Type-C, USB 10Gbps ports, HDMI 2.1 FRL, and optical S/PDIF. EZ Debug LEDs and a Flash BIOS Button assist with setup and troubleshooting. The motherboard also supports Windows 11 64-bit for current desktop systems.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | MAG | |
| Model | MAG B850 TOMAHAWK WIFI | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B850 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* |
|
| Audio | ||
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
|
| Expansion Slots | ||
| Expansion Slots | PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) |
|
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| Network | ||
| LAN | Realtek® 8126VB 5G LAN |
|
| Wireless Module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| Ports & Connectors | ||
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 years | |
