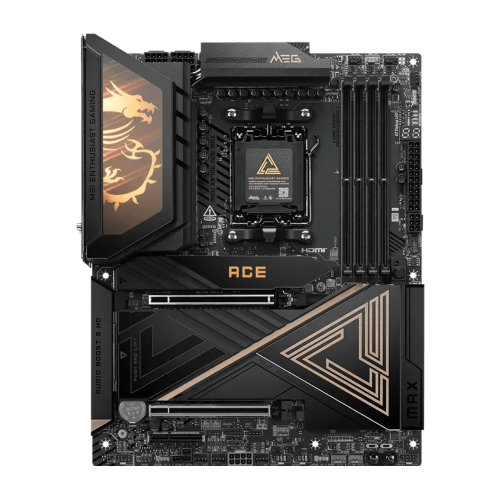

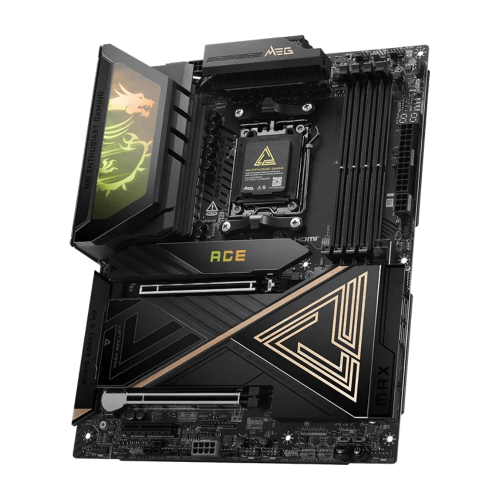

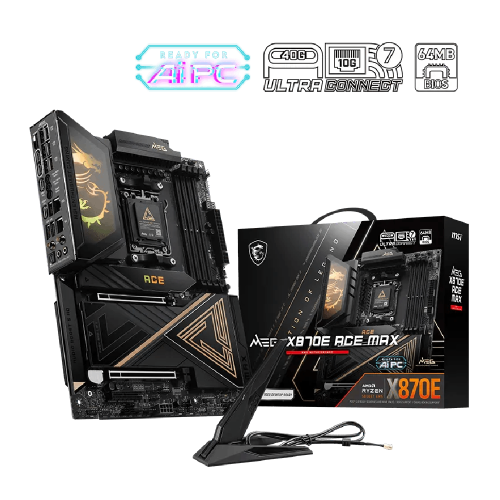

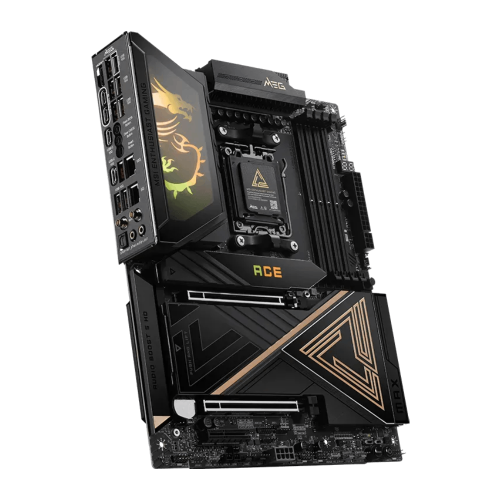

MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
Key Features
- Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
- Supported RAM: 4x UDIMM, Dual Channel DDR5 8400+MT/s (OC), Max 256GB
- Graphics Output: 2x Type-C DisplayPort, 1x HDMI
- Features: 7x M.2 Slot, 1x 10Gbps LAN, 1x 5Gbps LAN, Wi-Fi 7
97,000 ৳
Description
MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard
The MSI MEG X870E ACE MAX AMD AM5 ATX motherboard is a premium choice for gamers and creators, built on the powerful AMD X870E chipset with support for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors using the AM5 socket. It features 4x DDR5 UDIMM slots with a maximum capacity of 256GB, supporting DDR5 speeds from 9000 to 4800 MT/s, AMD EXPO™, dual-channel mode, and advanced overclocking options. Onboard graphics include HDMI™ 2.1 FRL with 8K 60Hz resolution and two Type-C DisplayPort connections, while expansion is handled by 2x PCIe 5.0 x16 slots, 1x PCIe 5.0 x4 slot, and flexible bandwidth sharing with M.2 storage. Audio is powered by Realtek® ALC4082 Codec and ESS9219Q DAC, delivering 7.1-channel high-performance sound with 32-bit/384kHz playback. Storage options include 5x M.2 slots supporting PCIe 5.0 and 4.0 devices, plus 4x SATA 6G ports, with RAID 0, 1, 5, and 10 supported depending on CPU series. Connectivity is future-ready with 2x USB 40Gbps Type-C, multiple USB 20Gbps and 10Gbps ports, plus 10Gbps and 5Gbps LAN. Wireless networking is powered by Wi-Fi 7 with MU-MIMO and Bluetooth® 5.4 support. Internal connectors include multiple fan headers, RGB LED connectors, TPM 2.0 support, and water cooling integration. Debugging is simplified with EZ Digi-Debug LED, EZ Memory Detection LED, and smart control switches. The back panel offers USB 40Gbps Type-C, HDMI™ 2.1, audio connectors, optical S/PDIF, LAN ports, Wi-Fi antenna, and BIOS flashback functionality. Designed for extreme performance, overclocking, and next-gen connectivity, the MSI MEG X870E ACE MAX is the ultimate ATX motherboard for enthusiasts seeking speed, stability, and advanced features in gaming and content creation.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | MEG X870E ACE MAX | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | MEG X870E ACE MAX | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Dual Channel DDR5 | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz* |
|
| Audio | ||
| Audio | Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Storage | ||
| Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) |
|
| RAID | Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | 1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN |
|
| Wireless Module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
|
| Bluetooth | Supports Bletooth® 5.4**, MLO, 4KQAM | |
| BIOS | ||
| BIOS | Flash BIOS Button | |
| Ports & Connectors | ||

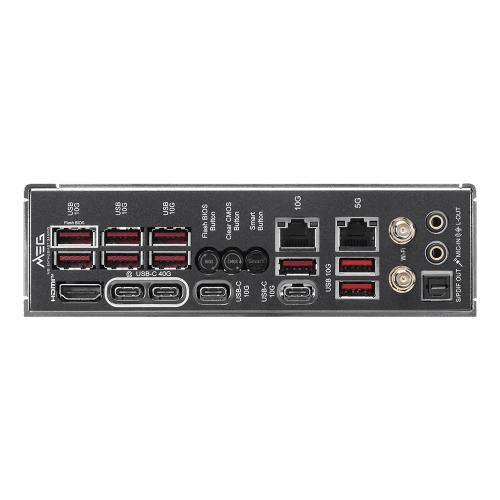

| USB Ports | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | LED FEATURE 1x EZ Digi-Debug LED 4x EZ Debug LED 1x EZ Memory Detection LED 1x EZ LED Control switchh |
|
| Warranty | ||
| Warranty | 3 years | |
