MSI MPG Ai1300TS PCIE5 1300W 80 Plus Titanium Fully Modular Power Supply

MSI MPG Ai1300TS PCIE5 1300W 80 Plus Titanium Fully Modular Power Supply

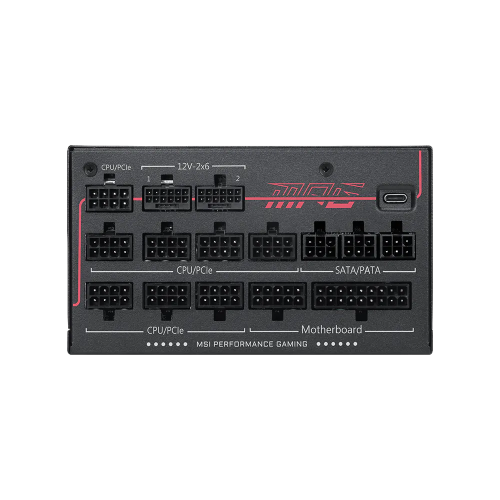

The MSI MPG Ai1300TS PCIE5 1300W Power Supply delivers high-capacity power for demanding gaming PCs and workstation builds. It features a 1300W output rating and an 80 PLUS TITANIUM efficiency certification. This power supply uses a fully modular design for cleaner cable management and easier installation. Its ATX form factor supports a wide range of compatible desktop computer cases. Measuring 150 x 190 x 86 mm, it offers a compact footprint for its power class. Active PFC helps improve power efficiency while supporting stable electrical performance. The input voltage range spans 100 to 240 VAC, with an input frequency range of 50 to 60 Hz. Cooling comes from a 135mm fan equipped with an FDB bearing for smooth operation. The MSI MPG Ai1300TS includes extensive protection features for safer system operation. These include OVP, OCP, OTP, OPP, SCP, UVP, SIP, and NLO protection. Connectivity includes one 24-pin motherboard connector for standard ATX systems. It also provides one 4+4-pin CPU connector and one dedicated 8-pin CPU connector. Two PCIe 5 12+4-pin connectors can deliver up to 600W each for compatible graphics cards. Seven PCIe 6+2-pin connectors support additional GPU configurations and expansion requirements. Eight SATA connectors provide power for storage drives and compatible accessories. Four peripheral 4-pin connectors support additional internal components. With its Titanium efficiency, high wattage, modern PCIe 5 connectivity, and modular cabling, this MSI PSU suits powerful PC configurations. It provides a strong foundation for high-performance gaming, content creation, and workstation systems requiring substantial power capacity.
