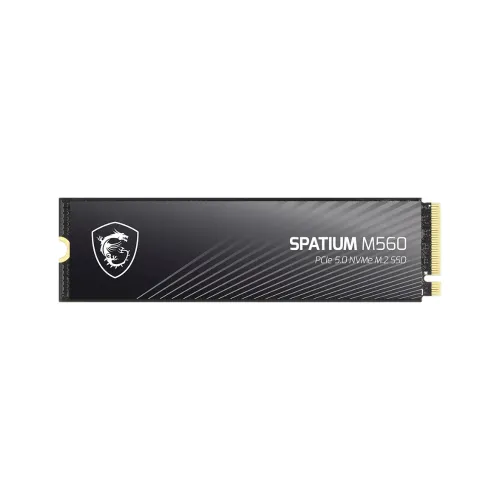

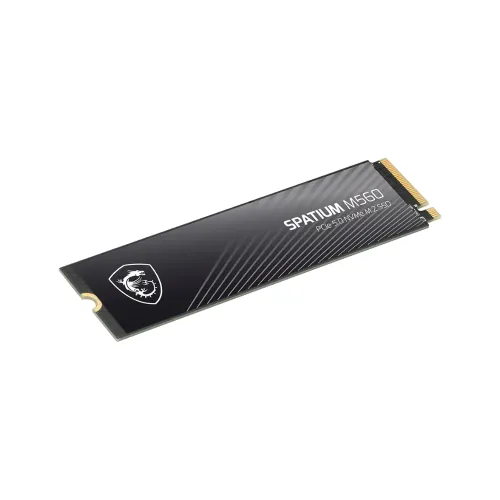

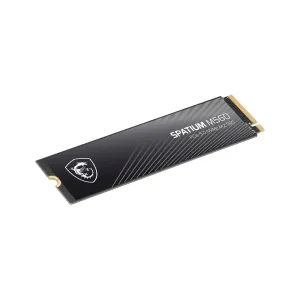

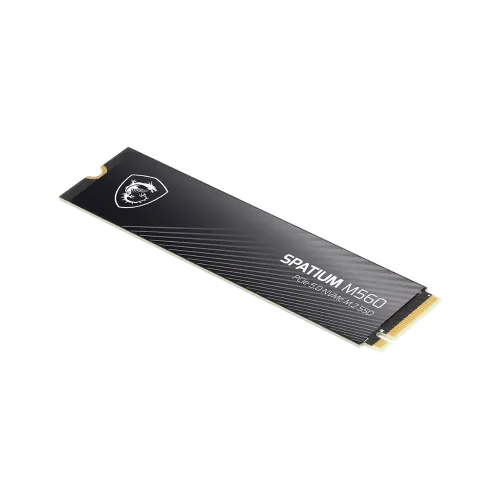

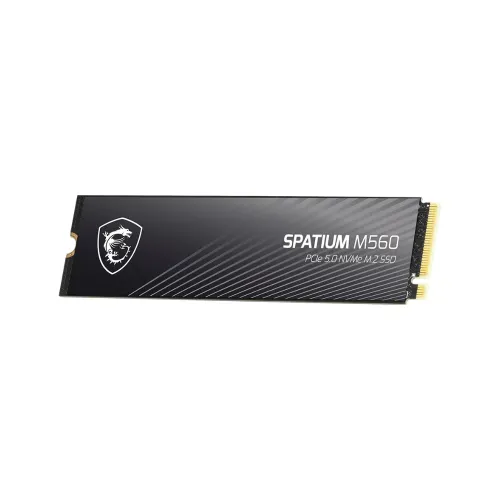

MSI SPATIUM M560 PCIe 5.0 NVMe M.2 1TB SSD
Key Features
- Storage Capacity: 1TB
- Interface: PCIe Gen5x4, NVMe 2.0
- Sequential Read: Up to 10,200 MB/sec
- Sequential Write: Up to 8,400 MB/sec
Description
MSI SPATIUM M560 PCIe 5.0 NVMe M.2 1TB SSD
The MSI SPATIUM M560 PCIe 5.0 NVMe M.2 1TB SSD offers 1TB of storage with a PCIe Gen5x4 interface and NVMe 2.0 support. It delivers sequential read speeds of up to 10,200MB/s and sequential write speeds of up to 8,400MB/s. Powered by a PHISON E31T controller and 3D NAND flash memory, this MSI M560 1TB SSD uses an M.2 2280 form factor and supports PCIe Gen5, Gen4, Gen3, Gen2, and Gen1 compatibility. It provides random 4KB read speeds of up to 1,300,000 IOPS and random write speeds of up to 1,400,000 IOPS. The MSI Gen5 NVMe SSD has a maximum operating power of 5.9W and supports TRIM, SMART, LDPC ECC, End-to-End Data Path Protection, and APST. With dimensions of 80 × 22 × 2.15mm and an operating temperature range of 0°C to 70°C, the MSI 1TB NVMe SSD is designed for compatible desktop and laptop systems requiring PCIe 5.0 storage.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | SPATIUM M560 | |
| Details | ||
| Capacity | 1TB | |
| Interface | PCIe Gen5x4, NVMe 2.0 | |
| Form Factor | M.2 2280 | |
| Others | Compatibility: PCIe Gen5 /PCIe Gen4 / Gen3 / Gen2 / Gen1 Flash Memory: 3D NAND Controller: PHISON E31T Real-Time SSD System Stability Monitoring |
|
| Performance | ||
| Max Sequential Read | Up to 10,200 MB/sec | |
| Max Sequential Write | Up to 8,400 MB/sec | |
| Temperature | ||
| Power Consumption | 5.9W | |
| Operating Temperature | 0°C – 70°C | |
| Storage Temperature | -40°C – 85°C | |
| Dimensions & Weight | ||
| Height | 2.15mm | |
| Width | 22.00mm | |
| Warranty | ||
| Warranty | 5 Years | |
