Description

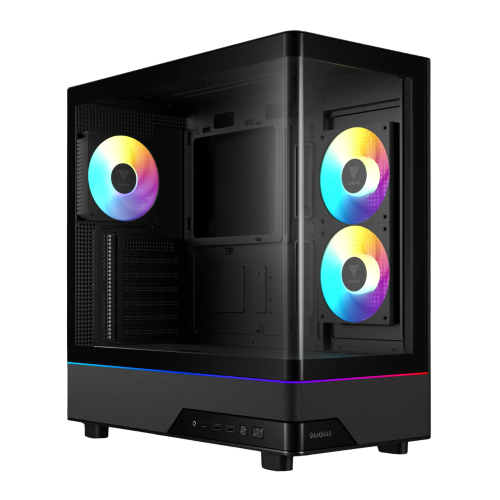

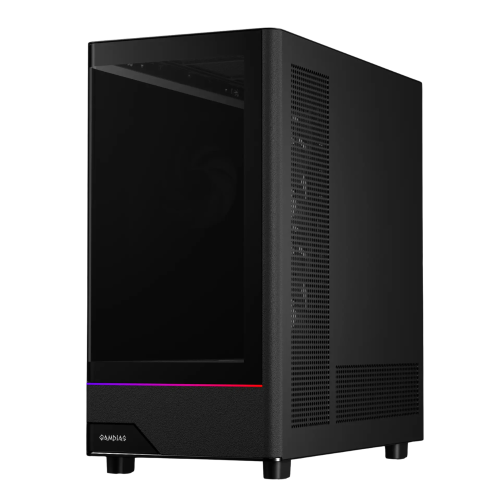

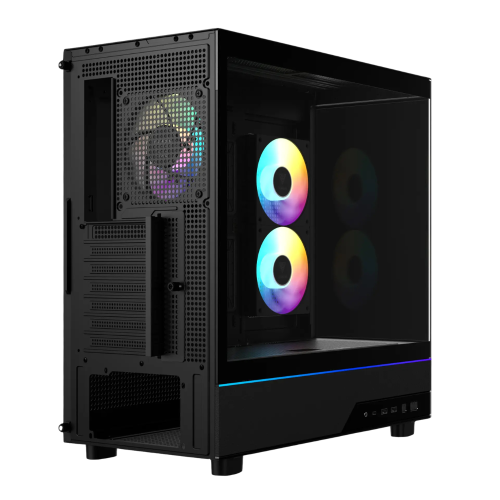

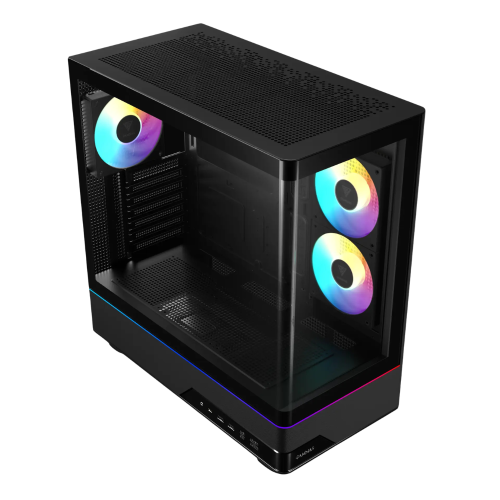

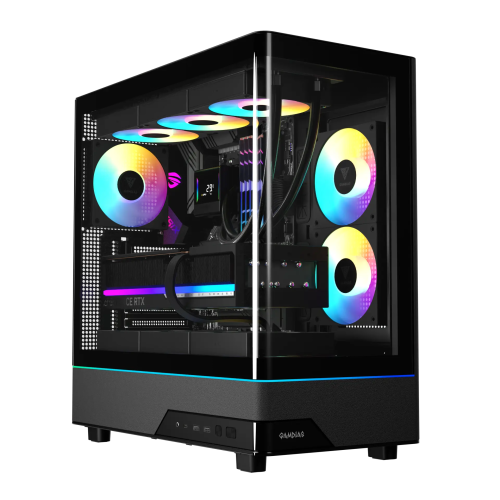

Gamdias ATLAS M5 CG ARGB ATX Mid-Tower Gaming Casing
The Gamdias ATLAS M5 CG ARGB ATX Mid-Tower Gaming Case delivers a sleek design with advanced cooling support. Crafted from SPCC, ABS, and tempered glass, it ensures durability and style. The L-shaped curved glass and seamless tempered display highlight internal components beautifully, while magnetic dust filters keep the system clean and efficient. Supporting ATX, Micro-ATX, and Mini-ITX motherboards, this case offers broad compatibility. It includes seven expansion slots and multiple drive bays for flexible storage. With clearance for a 175mm CPU cooler, 425mm GPU, and 220mm PSU, it accommodates high-performance hardware without compromise. The perforated PSU chamber enhances airflow, maintaining stable thermal performance. Cooling options are extensive, with radiator support up to 360mm on top and 140mm at the rear. Fan placements include top, side, rear, and bottom, ensuring optimized airflow. Pre-installed ARGB PWM fans provide vibrant lighting synchronized via a 5V 3-pin header. This setup balances aesthetics and cooling efficiency, making the case a strong choice for gaming builds. Connectivity is modern and convenient, featuring a Gen 2x2 Type-C port, dual USB 3.0, HD audio, and LED control. Dimensions of 445 x 230 x 468mm make it spacious yet manageable. The ATLAS M5 CG ARGB blends striking design with reliable functionality, offering gamers a refined chassis for powerful setups.
Specification
| Brand & Model | ||
| Brands | Gamdias | |
| Model | ATLAS M5 CG |
|
| Details | ||
| Case Type | MID Tower |
|
| Motherboard Support | ATX、Micro-ATX、Mini-ITX |
|
| Materials | SPCC & ABS & Tempered glass | |
| Fan Support | Top: 3 x 120mm, 2 x 140mm Side: 2 x 120mm Rear: 1 x 120mm, 1 x 140mm Bottom: 3 x 120mm |
|
| Pre-installed Fans | Side: 2 x 120mm PWM ARGB Fans Rear: 1 x 120mm PWM ARGB Fan |
|
| Radiator Support | Top: 360mm, 280mm Rear: 140mm, 120mm |
|
| I/O Port | Type-C x 1, USB 3.0 x2, HD Audio x1, LED Control x1 | |
| Filter | Magnetic Dust Filter | |
| Expansion & Drive Bay | ||
| Expansion Slots | 7 | |
| Drive Bays | 2 x 3.5" or 2 x 2.5"+1 x 3.5"(HDD Cage) 1 x 2.5" |
|
| Physical Specification | ||
| Color | Black | |
| Dimensions | 445 x 230 x 468mm | |
| Clearance Space | ||
| Max GPU Length | 425mm | |
| Max CPU Cooler Height | 175mm | |
| Max PSU Length | 220mm | |
| Warranty Information | ||
| Warranty | No | |
