MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
0 Customer Review
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7600+(OC) MHz,256GB
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
25,500 ৳
remove
add
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | B650M PROJECT ZERO | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4x DIMMs | |
| Supported Memory | 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, the maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Audio Connectors |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) M.2 Socket 2x M.2 |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek RTL8125BG 2.5Gbps LAN |
|
| Wireless Module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
|
| Ports & Connectors | ||
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| Internal I/O Ports | INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|

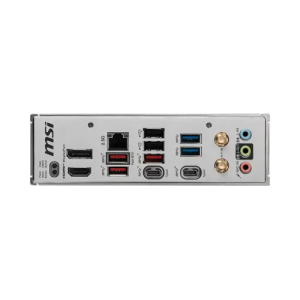

| Rear Panel I/O Ports | BACK PANEL PORTS DisplayPort 2.5G LAN USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C) |
|
| Form Factor | ||
| Form Factor | mATX 243.84mmx243.84mm |
|
| Warranty | ||
| Warranty | 3 years | |
