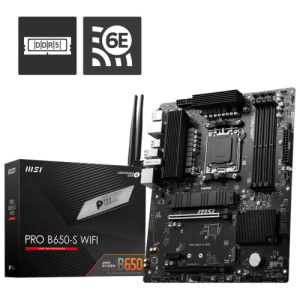

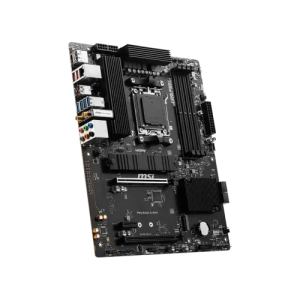

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 7200+(OC) MHz,256GB
- Graphics Output: 1x HDMI, 1x Display Port
- Features: 2.5G LAN with Wi-Fi 6E Solution
20,900 ৳
Description
MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
The MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is designed to deliver outstanding performance for enthusiasts, gamers, and professionals. It supports AMD Ryzen 8000 and 7000 Series Desktop Processors, ensuring compatibility with the latest high-performance CPUs. With support for DDR5 memory, it offers dual-channel speeds up to 7200+ MHz (OC), providing rapid data transfer and excellent system responsiveness. Its 12+2 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost technologies ensure a stable and efficient power supply for optimal performance. The motherboard features a premium thermal solution with 7W/mK MOSFET thermal pads and M.2 Shield Frozr, effectively managing heat dissipation for high-performance systems. The robust 6-layer PCB, made from 2oz thickened copper, enhances durability and stability, making it ideal for handling heavy workloads. It also includes PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 connectors, meeting the demands of modern gaming and data-intensive applications. For networking, the motherboard offers 2.5G LAN and Wi-Fi 6E, providing secure, reliable, and high-speed connections suitable for both professional and multimedia use. AUDIO BOOST technology delivers studio-grade sound quality, enhancing the immersive gaming experience. In summary, the MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard is a feature-rich option that provides a robust and dependable foundation for gamers and professionals seeking top-tier performance and functionality.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | B650-S WIFI | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4x DIMMs | |
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Audio Connectors |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek 8125BG 2.5G LAN |
|
| Wireless Module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
|
| Ports & Connectors | ||
| USB Ports | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| Internal I/O Ports | INTERNAL IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|

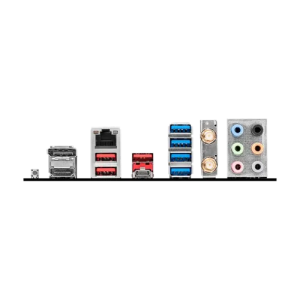

| Rear Panel I/O Ports | BACK PANEL PORTS: DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 years | |
