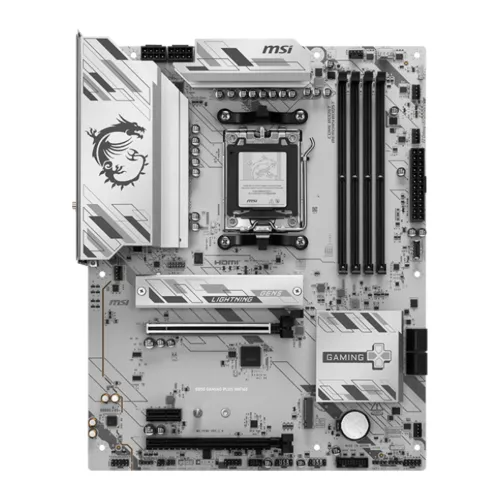

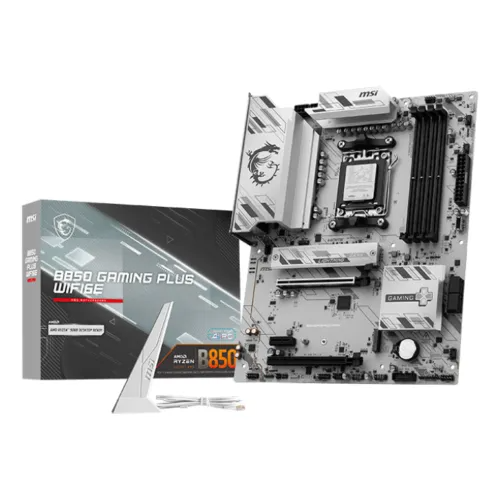

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard
0 Customer Review
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series for Socket AM5
- Supported RAM: 4x DDR5, Up to 8200 (OC) MT/s, Max. 256GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
28,300 ৳
remove
add
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | B850 GAMING PLUS WIFI6E | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B850 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek 8125D 2.5G LAN | |
| Wireless Module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA | |
| Ports & Connectors | ||

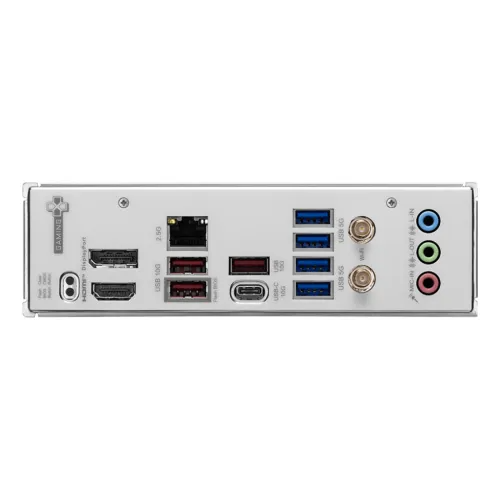

| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Bundled Software | Support for Windows® 11 64-bit | |
| Unique Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 years | |
