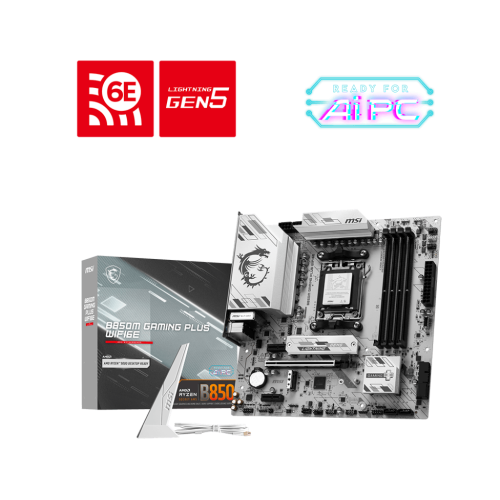

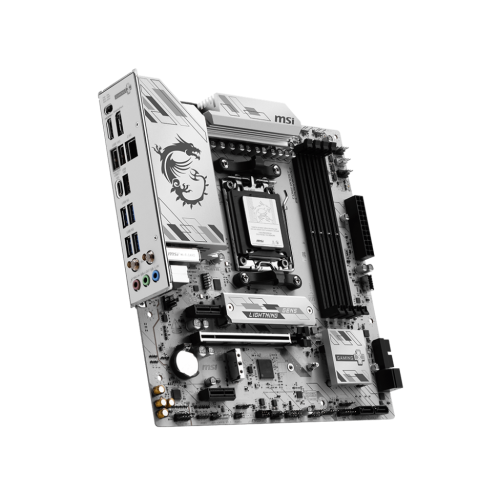

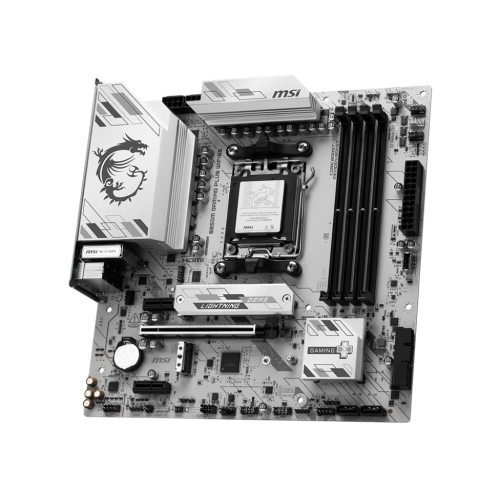

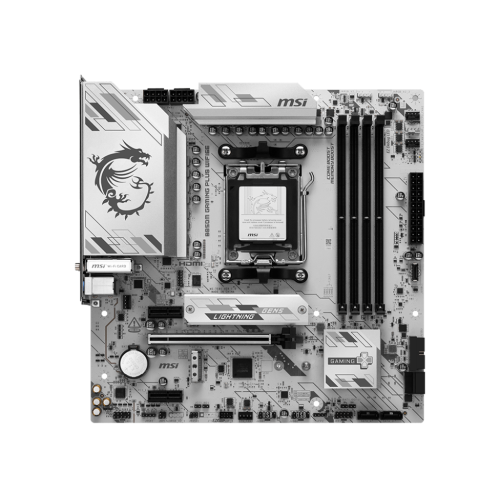

MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
23,800 ৳
Description
MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard
The MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard is a feature-rich, performance-focused solution designed to harness the full power of AMD’s latest processors. Engineered for the AM5 socket, this motherboard supports the AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, making it future-ready for demanding gaming and productivity tasks. Built on the AMD B850 chipset, the MSI B850M GAMING PLUS WIFI6E supports 4x DDR5 UDIMM slots with up to 256GB memory capacity and blazing-fast speeds up to 8200+ MT/s (OC), depending on configuration. It is optimized for AMD EXPO™, JEDEC standards, and dual-channel architecture, supporting CUDIMM and non-ECC unbuffered memory. Ideal for high-end graphics, this motherboard includes 1x HDMI 2.1 and 1x DisplayPort 1.4, both capable of 4K resolution at 60Hz. For graphics cards and other peripherals, the MSI B850M GAMING PLUS WIFI6E Motherboard features 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, supporting scalable bandwidth based on CPU series. Storage capabilities are extensive with 2x M.2 slots—the primary slot (M2_1) supports PCIe 5.0 x4 for ultra-fast NVMe SSDs (with Ryzen 9000/7000), while the secondary slot supports PCIe 4.0 x4/x2, along with 4x SATA 6Gb/s ports. It also supports RAID 0, 1, and 10 for SATA and RAID 0/1 for NVMe M.2 drives. For networking, this board is equipped with Realtek 8125D 2.5G LAN, built-in Wi-Fi 6E, and Bluetooth 5.3, offering next-gen connectivity, MU-MIMO support, and tri-band wireless performance up to 2.4Gbps. Connectivity is abundant with a total of 11 USB ports, including 4x USB 5Gbps Type-A (rear), 3x USB 10Gbps Type-A (rear), 1x USB 10Gbps Type-C (rear), and front panel headers for USB 2.0, USB 5Gbps, and USB 10Gbps Type-C. The Realtek ALC897 audio chipset delivers 7.1-channel high-definition sound, ideal for immersive gaming or multimedia experiences. This MSI B850M GAMING PLUS WIFI6E AM5 Motherboard also features 4x EZ Debug LEDs, EZ Memory Detection LED, and extensive fan headers including CPU, pump, and 3x system fan connectors. Aesthetically and functionally enhanced with 3x ARGB (JARGB_V2) and 1x RGB LED (JRGB) headers, plus TPM 2.0 support, it comes in a compact mATX form factor (243.84mm x 243.84mm), perfect for small yet powerful builds.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | B850M GAMING PLUS WIFI6E | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B850 | |
| Memory | ||
| Memory Type | DDR5 UDIMM | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek 8125D 2.5G LAN |
|
| Wireless Module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
|
| Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA | |
| Ports & Connectors | ||

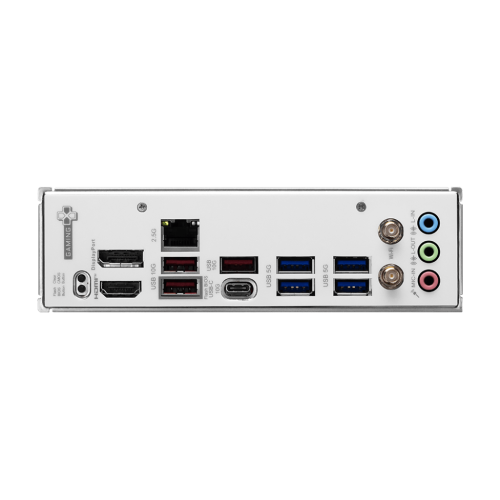

| USB Ports | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | mATX 243.84mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 years | |
