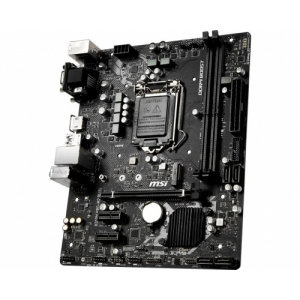

MSI H310M Pro-M2 DDR4 Motherboard
0 Customer Review
Key Features
- Supported CPU: Intel Core 9th / 8th Gen / Pentium Gold / Celeron for LGA 1151
- Supported RAM: 2x DDR4, Max 32GB, up to 2666(OC) MHz

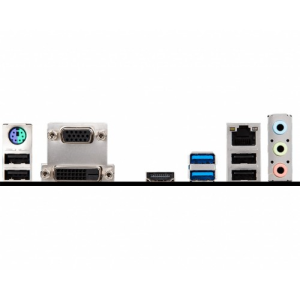

- Graphics Output: 1x DVI-D, 1 x HDMI, 1x VGA
- Features: 1x M.2, 1x Intel Gigabit LAN
10,700 ৳
remove
add
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | H310M Pro-M2 | |
| Supported CPU | ||
| CPU Type | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket | |
| Chipsets | ||
| Chipset | Intel H310 Chipset | |
| Memory | ||
| Memory Type | Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Number of Memory Slots | 2 x DDR4 memory slots | |
| Supported Memory | Supports DDR4 2666/ 2400/ 2133 MHz | |
| Maximum Memory | 32GB | |
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz |
|
| Audio | ||
| Audio | Realtek ALC887 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots M.2 Socket 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
|
| Storage | ||
| Storage | Intel H310 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
|
| Network | ||
| LAN | 1 x Intel I219-V Gigabit LAN controller |
|
| Ports & Connectors | ||
| USB Ports | Intel H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
|
| Form Factor | ||
| Form Factor | m-ATX Form Factor 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm) |
|
| Warranty | ||
| Warranty | 3 years | |
