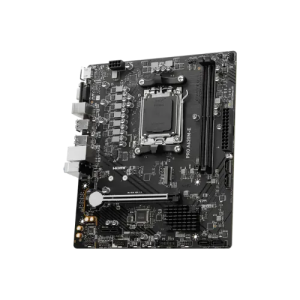

MSI PRO A620M-E AMD AM5 mATX Motherboard
Key Features
- Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, Max 96GB 6000+MHz (OC)
- Graphics Output: 1x HDM, 1x VGA
- Features: 1x M.2, RTL8111H Gigabit LAN
11,600 ৳
Description
MSI PRO A620M-E AMD AM5 mATX Motherboard
The MSI PRO A620M-E AMD AM5 mATX motherboard is built to support the latest AMD Ryzen 7000 Series desktop processors, making it an ideal choice for modern computing needs. Its compatibility with DDR5 memory and Dual Channel DDR5 6000+MHz (OC) ensures blazing-fast memory speeds and enhanced system performance. With Core Boost technology and a premium layout featuring a digital power design, the motherboard guarantees optimal power delivery, supporting more cores for improved overall performance. Memory Boost technology provides pure data signals, utilizing advanced techniques to ensure peak performance, stability, and compatibility. Gamers will appreciate the Lightning Gen 4 x4 M.2 support and PCIe 4.0 slots, which offer faster data transfer and reduced loading times, delivering an exceptional gaming experience. Additionally, the motherboard features Audio Boost for studio-quality sound, enhancing the immersive gaming experience. To ensure better performance, stability, and durability, the MSI PRO A620M-E incorporates Steel Armor to protect VGA cards from bending and electromagnetic interference (EMI). This combination of advanced features makes the motherboard a robust platform for building a powerful gaming rig or professional setup.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | A620M-E | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 8000 / 7000 Series Processors for Socket AM5 | |
| Chipsets | ||
| Chipset | AMD A620 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2 | |
| Supported Memory | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices | |
| Network | ||
| LAN | Realtek RTL8111H Gigabit LAN |
|
| Ports & Connectors | ||
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| Form Factor | ||
| Form Factor | mATX 211mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
