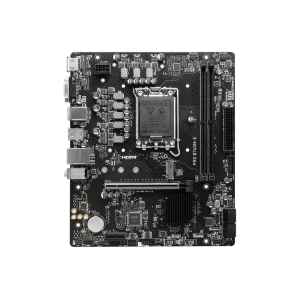

MSI PRO B760M-E DDR5 mATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR5, Max 128GB, 6400+(OC)
- Graphics Output: 1x HDMI, 1x VGA
- Features: 1x M.2 slot, Realtek Gigabit LAN
13,700 ৳
Description
MSI PRO B760M-E DDR5 mATX Motherboard
The MSI PRO B760M-E is a micro-ATX motherboard with an LGA 1700 socket that supports 14th, 13th, and 12th-generation Intel Core, Pentium Gold, and Celeron processors. It features dual-channel DDR5 memory with a maximum capacity of 128GB and speeds up to 6400+ MHz (OC). The motherboard includes 1x HDMI (1.4 with HDR, 4K 30Hz), 1x VGA (2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz), 1x PCI-E x16 slot, and 1x PCI-E x1 slot. It supports Intel XMP 3.0 OC, dual-controller dual-channel mode, non-ECC un-buffered memory, Realtek® ALC897 Codec for 7.1-channel high-definition audio, and 1x M.2 slot (supports PCIe 4.0 x4 / SATA mode). The motherboard also includes 4x SATA 6G ports (RAID 0, 1, 5, 10 supported), 4x USB 2.0 ports (rear and front), 2x USB 5Gbps Type-A ports (rear and front), Realtek® RTL8111H Gigabit LAN, 1x CPU Fan, 2x System Fan, and support for Windows® 11 64-bit and Windows® 10 64-bit. Dimensions: 200mm x 236.16mm.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO B760M-E | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL B760 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2 | |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices | |
| Network | ||
| LAN | 1x Realtek RTL8111H 1Gbps LAN controller |
|
| Ports & Connectors | ||

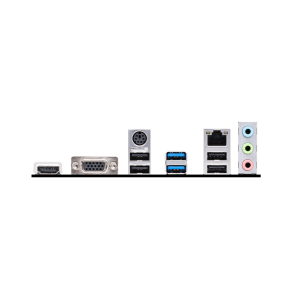

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| Form Factor | ||
| Form Factor | mATX 200mmx236.16mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
