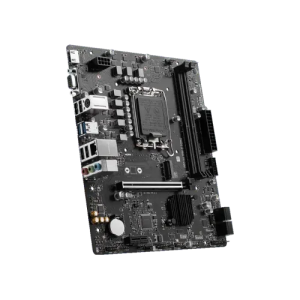

MSI PRO H610M-E DDR4 mATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB
- Graphics Output: 1x HDMI, 1x VGA
- Features: 1x M.2 slot, Realtek Gigabit LAN
10,300 ৳
Description
MSI PRO H610M-E DDR4 mATX Motherboard
The MSI PRO H610M-E DDR4 12th Gen, 13th Gen & 14th Gen mATX Motherboard is a high-performance motherboard designed for the LGA 1700 socket, supporting 12th/13th Gen Intel Core, Pentium Gold, and Celeron CPUs. It features DDR4 memory compatibility, with speeds up to 3200MHz, ensuring smooth and efficient performance. Equipped with Core Boost technology, a premium layout, and a digital power architecture, this motherboard enhances performance and supports additional cores. Memory Boost technology delivers pure data signals, providing the highest performance, stability, and compatibility. The motherboard includes PCIe 4.0, enabling extremely rapid data transfers, and Audio Boost technology for studio-level sound quality, making it ideal for gamers and music enthusiasts. Additionally, Steel Armor protects VGA cards from bending and EMI, improving performance, stability, and robustness. Overall, the MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard is an excellent choice for those seeking a high-performance motherboard capable of handling demanding programs and games, thanks to its advanced features and superior design.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO H610M-E DDR4 | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL H610 | |
| Memory | ||
| Memory Type | DDR4 | |
| Number of Memory Slots | 2 | |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | supporting a maximum resolution of 4K 30Hz supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1 |
|
| Network | ||
| LAN | 1x Realtek RTL8111H 1Gbps LAN controller |
|
| Ports & Connectors | ||
| USB Ports | 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin +12V power connector 1x 4-pin CPU fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |
|
| Form Factor | ||
| Form Factor | mATX 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x 4-pin RGB LED connector |
|
| Warranty | ||
| Warranty | 3 years | |
