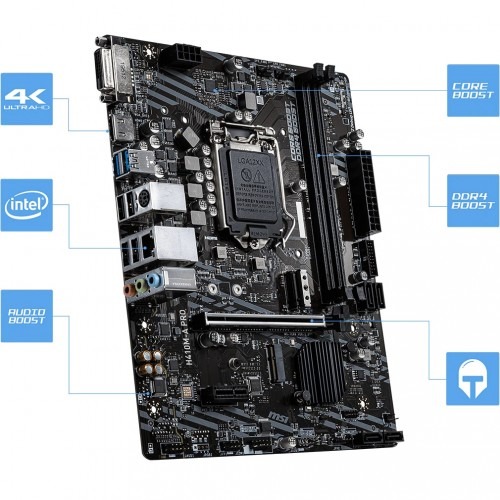

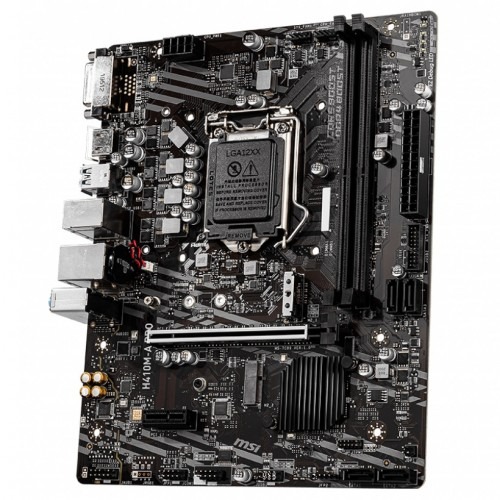

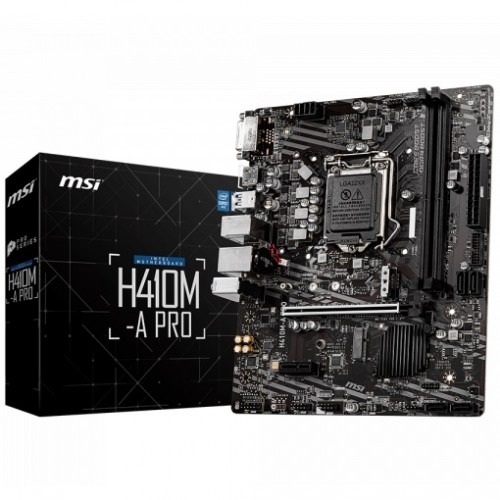

MSI H410M-A PRO Intel 10th Gen Micro-ATX Motherboard
Key Features
- Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors
- DDR4, Audio & Core Boost
- Low Latency Gaming LAN
- Extreme Stability & Compatibility
11,400 ৳
Description
MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard
The MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard is built to deliver exceptional stability, compatibility, and performance for everyday computing and gaming. Featuring the Intel LGA 1200 socket, it supports 10th Gen Intel Core, Pentium Gold, and Celeron processors, making it a versatile choice for a wide range of users. Its compact Micro-ATX form factor (9.3 x 7.5 inches) ensures easy installation in smaller cases without sacrificing essential features. Memory performance is optimized with dual-channel DDR4 support, allowing up to 64GB RAM. Depending on the processor, speeds reach 2933 MHz for Core i7/i9 and 2666 MHz for Core i5 and below. Expansion options include a PCIe 3.0 x16 slot for graphics cards, a PCIe 3.0 x1 slot, and an M.2 socket supporting PCIe 3.0 x4 and SATA SSDs, ensuring fast storage solutions. Connectivity is comprehensive, with HDMI 1.4 supporting resolutions up to 4096x2160 @30Hz, DVI-D at 1920x1200 @60Hz, and multiple USB 3.2 Gen 1 and USB 2.0 ports. Networking is powered by the Intel I219V Gigabit LAN controller, delivering low-latency performance ideal for gaming. Storage flexibility comes with 4x SATA 6Gb/s ports and advanced M.2 compatibility. For audio, the Realtek ALC892 codec provides 7.1-channel HD sound, enhancing multimedia experiences. Additional features like Core Boost technology, EZ Debug LEDs, and TPM support make this motherboard reliable and secure. Overall, the MSI H410M A Pro is a powerful, compact solution for users seeking dependable performance and efficient multitasking.
Specification
| Supported CPU | ||
| CPU Type | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket | |
| Chipsets | ||
| Chipset | Intel H410 | |
| Memory | ||
| Memory Type | Dual Channel Memory Architecture DDR4 |
|
| Number of Memory Slots | 2 x DIMM |
|
| Supported Memory | Intel Core i7/ i9 -Supports up to DDR4 2933 MHz Intel Core i5 and below -Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
|
| Audio | ||
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) |
|
| Storage | ||
| Storage | Intel H410 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
|
| Ports & Connectors | ||

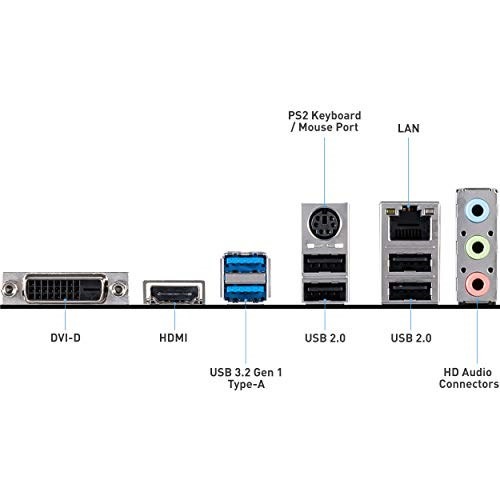

| USB Ports | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz |
|
| Internal I/O Ports | Intel H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) 1x Intel I219V Gigabit LAN controller |
|
| Rear Panel I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |
|
| Form Factor | ||
| Form Factor | Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) | |
| Warranty | ||
| Warranty | 03 Years |
|
