MSI MAG A1000GL PCIE5 1000W 80 Plus Gold Power Supply
(0) Review
Key Features
- Fan Size: 135 mm
- Efficiency Rating: 80 PLUS Gold (up to 90%)
- Fan Bearing: Fluid Dynamic Bearing
- PFC Type: Active PFC
22,300 ৳
remove
add
Description
MSI MAG A1000GL PCIE5 1000W 80 Plus Gold Power Supply
The MSI MAG A1000GL PCIE5 is a high-performance, fully modular power supply designed for demanding gaming and computing systems. It boasts an 80 PLUS Gold certification, ensuring up to 90% energy efficiency and lower power consumption. This power supply supports ATX 3.1 and PCIe 5.1 standards, making it compatible with the latest graphics cards, including the NVIDIA GeForce RTX 40 Series. It features a 1000W output capacity, a 135mm fluid dynamic bearing fan for quiet operation, and multiple protection mechanisms such as OCP, OVP, SCP, OPP, and OTP. The fully modular design simplifies cable management, reducing clutter and improving airflow within the case.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | A1000GL | |
| Details | ||
| Maximum Power | 1000W | |
| Fans | 135 mm | |
| Input Voltage | 100~240 VAC | |
| Frequency | 50-60Hz | |
| Output Power | 2000W (*up to 200% of the PSU's rated power for 100μs) | |
| Efficiency | 80 PLUS Gold (up to 90%) | |
| Dimension | 150 x 150 x 86 mm | |
| Others | Protection OCP / OVP / OPP / OTP / SCP / UVP |
|

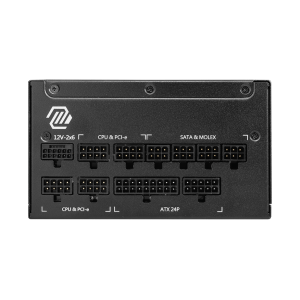

| Connectors | ||
| Main Power | 1 x ATX (24 PIN) | |
| CPU | 2x EPS (4+4 pin) |
|
| PCI-E | 1x PCI-E 5.1 (16 pin) (600W) 4x PCI-E (6+2 pin) |
|
| SATA | 12x SATA (15 pin) |
|
| Molex | 4x Molex (4 pins) |
|
| Floppy | 1 x FDD (4 PIN) | |
| Warranty Information | ||
| Warranty | 5 years | |
