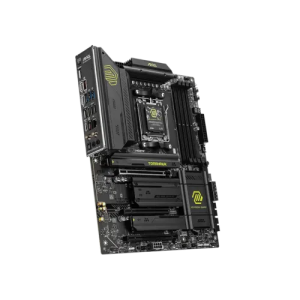

MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard
Key Features
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5 8400+(OC) MHz
- Graphics Output: 1x HDMI, 2x Type-C Display Port
- Features: Realtek 8126-CG 5G LAN, Wi-Fi 7
48,000 ৳
Description
MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard
The MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard is a top-tier option crafted for gamers, enthusiasts, and professionals seeking cutting-edge performance and reliability. This motherboard is designed to accommodate AMD Ryzen 9000, 8000, and 7000 series processors, providing a robust platform for both gaming and professional applications. With support for DDR5 memory, the motherboard leverages dual-channel DDR5 speeds up to 8400+ MT/s (overclocked), delivering lightning-fast performance for the most demanding tasks. Equipped with an advanced 14+2+1 Duet Rail Power System and dual 8-pin CPU power connectors, along with MSI's Core and Memory Boost technologies, this motherboard ensures powerful and stable performance. The 8-layer PCB, made with 2oz thickened copper and server-grade materials, guarantees durability and reliability. The Frozr Guard cooling solution, featuring an extended heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads, keeps the system cool even under heavy loads. The EZ M.2 Shield Frozr II enhances thermal performance for M.2 SSDs.For easy PC building, the motherboard includes EZ DIY features such as the EZ M.2 Clip II, EZ PCIe Release, and EZ Antenna. Gamers will enjoy the ultimate gaming experience with the PCIe 5.0 slot and Lightning Gen 5 x4 M.2, offering ultra-fast data access speeds. Connectivity is further enhanced with Ultra Connect, featuring USB4 and 5G LAN with Wi-Fi 7, ensuring secure, stable, and high-speed networking and data transmission for professional and multimedia use. Additionally, Audio Boost 5 delivers studio-grade sound quality, providing an immersive audio experience for gaming enthusiasts. Whether you're building a high-performance gaming rig or a professional workstation, the MSI MAG X870 TOMAHAWK WIFI AM5 Motherboard provides a balanced and reliable system that excels in every aspect.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | MAG | |
| Model | X870 TOMAHAWK WIFI | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD X870 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4x UDIMM | |
| Supported Memory | Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* |
|
| Audio | ||
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-bit/384kHz playback on the front panel Supports S/PDIF output |
|
| Expansion Slots | ||
| Expansion Slots | PCI 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |
| Network | ||
| LAN | Realtek 8126-CG 5G LAN |
|
| Wireless Module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Ports & Connectors | ||

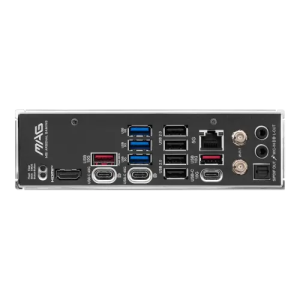

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 304.8mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x EZ Digit Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
