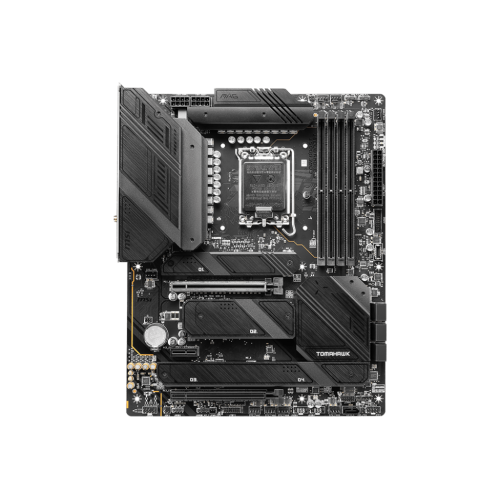

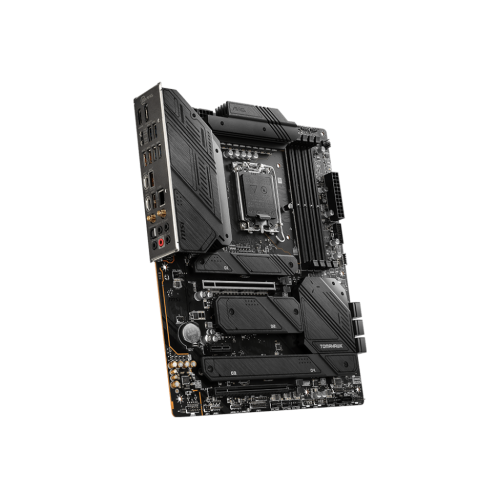

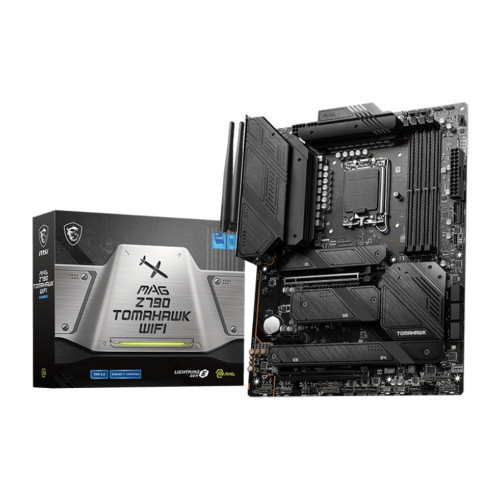

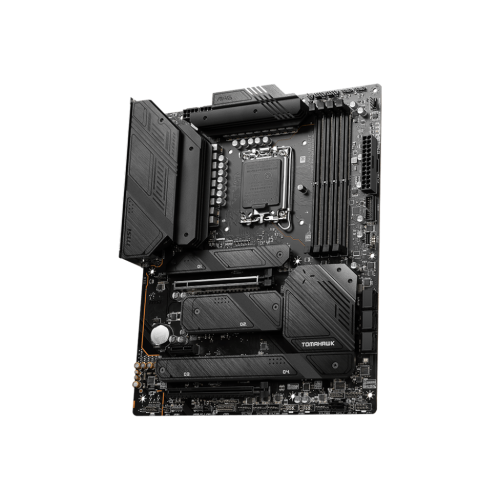

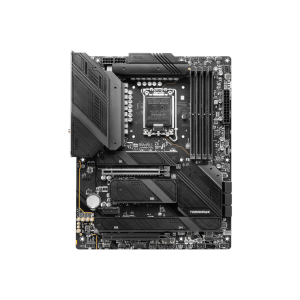

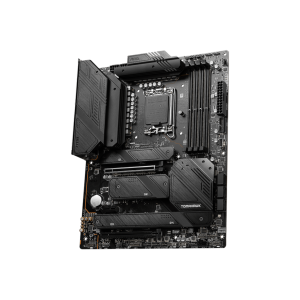

MSI MAG Z790 TOMAHAWK WIFI DDR5 ATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor
- Supported RAM: 4x DDR5, 7200+(OC), Max 256GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5Gbps LAN with Wi-Fi 6E
40,000 ৳
Description
MSI MAG Z790 TOMAHAWK WIFI DDR5 ATX Motherboard
The MSI MAG Z790 TOMAHAWK WIFI DDR5 ATX Motherboard is a high-performance motherboard designed for gamers, content creators, and PC enthusiasts seeking powerful and reliable computing. Supporting Intel 14th, 13th, and 12th Gen Core processors, as well as Intel Pentium Gold and Celeron CPUs, it utilizes the LGA 1700 socket combined with the Intel Z790 chipset for optimal performance and stability. The motherboard accommodates up to 256GB of DDR5 RAM across four slots, supporting memory speeds up to 7200+ MHz (OC) depending on the configuration, ensuring lightning-fast multitasking and overclocking potential. For graphics output, it offers one HDMI 2.1 port with HDR (4K 60Hz) and one DisplayPort 1.4 (8K 60Hz), perfect for high-resolution displays. Storage options are abundant with four M.2 slots, supporting PCIe 4.0 x4 devices of varying sizes and seven SATA 6Gb/s ports, all compatible with RAID 0, 1, 5, and 10 configurations for both SATA and NVMe drives. Expansion capabilities include two PCIe x16 slots (x16/x4) and one PCIe x1 slot, allowing multiple GPU and high-speed peripheral setups. Networking is powered by Intel 2.5Gbps LAN and Intel Wi-Fi 6E, supporting MU-MIMO TX/RX, 2.4/5/6 GHz bands, and Bluetooth 5.3 for seamless wireless connectivity. Audio is handled by the Realtek ALC4080 codec, delivering 7.1-channel USB high-performance audio, S/PDIF output, and up to 32-bit/384 kHz playback. Connectivity is extensive with a combination of USB 2.0, 5Gbps, 10Gbps, and 20Gbps Type-C/A ports, alongside comprehensive internal headers for fans, RGB lighting, TPM 2.0, and front-panel controls. Measuring 243.84mm x 304.8mm in the ATX form factor, the motherboard also features 4x EZ Debug LEDs for troubleshooting and easy system monitoring, making the MSI MAG Z790 TOMAHAWK WIFI a robust, future-ready platform for any high-end PC build.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | MAG Z790 TOMAHAWK WIFI | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | Intel Z790 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz |
|
| Audio | ||
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G |
|
| Storage | ||
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Intel 2.5Gbps LAN | |
| Wireless Module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Bluetooth | Supports Bluetooth® 5.3, FIPS, FISMA | |
| Ports & Connectors | ||

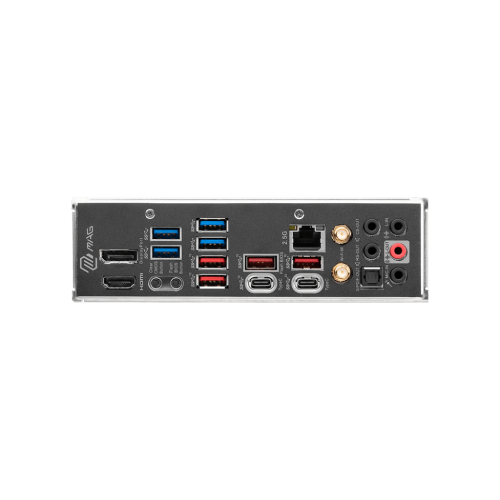

| USB Ports | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 years | |
