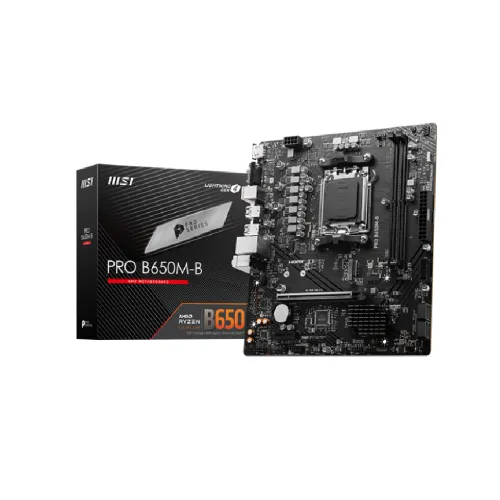

MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard
0 Customer Review
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 6800+(OC) MHz
- Graphics Output: 1x HDMI, 1x VGA
- Features: 2.5G LAN
production_quantity_limits
Up Coming
remove
add
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO B650M-B | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2 DIMMs | |
| Supported Memory | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Audio | ||
| Audio | Audio Connectors | |
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Network | ||
| LAN | Realtek RTL8125BG 2.5G LAN | |
| Ports & Connectors | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| Form Factor | ||
| Form Factor | mATX 243.84mmx243.84mm |
|
| Others | ||
| Unique Feature | ||
| Warranty | ||
| Warranty | 3 years | |
