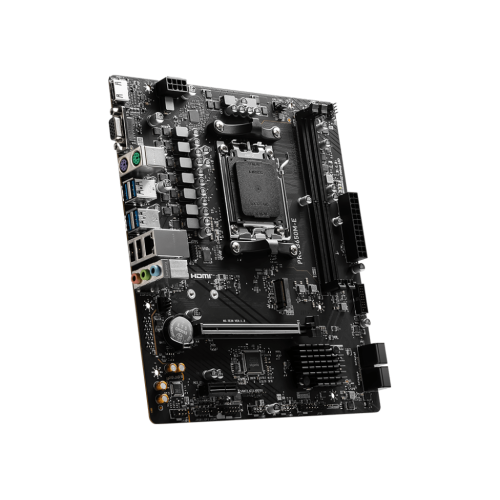

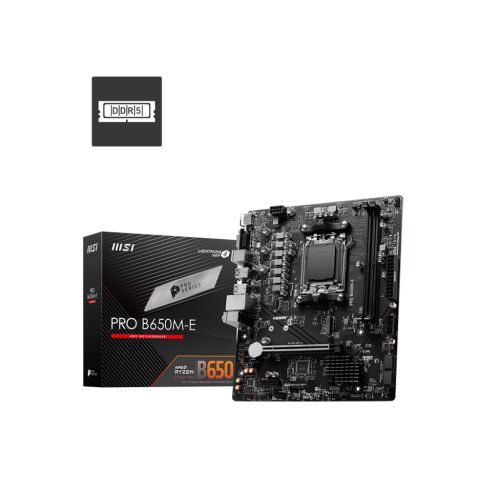

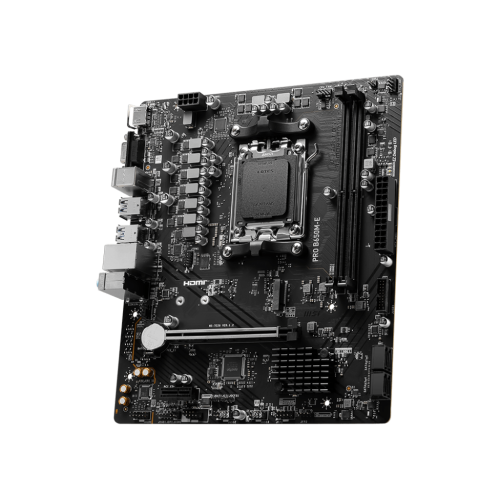

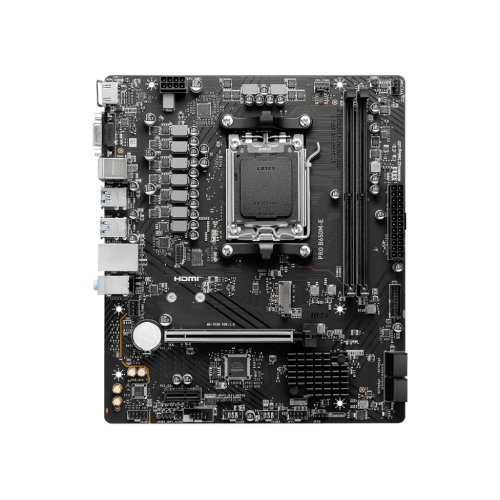

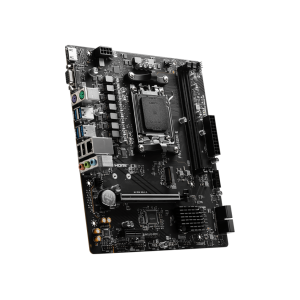

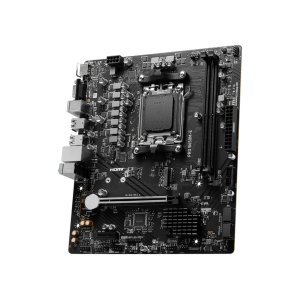

MSI PRO B650M-E AM5 mATX Motherboard
Key Features
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 6800+ (OC)
- Graphics Output: 1x HDMI, 1x VGA
- Features: Realtek RTL8111H Gigabit LAN
13,300 ৳
Description
MSI PRO B650M-E AM5 mATX Motherboard
The MSI PRO B650M-E AM5 mATX Motherboard is a high-performance, feature-rich motherboard designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series processors with the cutting-edge Socket AM5 platform. Part of MSI’s reliable PRO series, the MSI PRO B650M-E offers exceptional compatibility and robust performance, making it an ideal choice for gamers, content creators, and professional users. This motherboard supports DDR5 memory up to 6800+ MHz (OC) across two DIMM slots, enabling up to 128GB of ultra-fast dual-channel RAM with AMD EXPO profiles for easy memory overclocking. For graphics, the MSI PRO B650M-E features both HDMI 2.1 and VGA outputs, supporting up to 4K resolution at 60Hz via HDMI and multiple legacy resolutions on VGA, ensuring broad display compatibility. Storage options include a PCIe 4.0 x4 M.2 slot and four SATA 6Gb/s ports with RAID 0, 1, and 10 support, offering versatile, high-speed storage solutions. Networking is powered by the Realtek RTL8111H Gigabit LAN, providing stable and fast wired internet connectivity. Expansion is flexible with a PCIe x16 slot optimized for Ryzen processors—offering full x16 lanes for Ryzen 9000/7000 series—and a PCIe x1 slot for additional peripherals. The board’s audio is driven by the Realtek ALC897 codec, delivering immersive 7.1-channel high-definition sound. Connectivity is abundant with multiple USB ports, including 4x USB 5Gbps Type-A ports on the rear and front panels, plus USB 2.0 ports for legacy devices. The motherboard supports essential internal headers such as power connectors, CPU and system fans, TPM 2.0 for enhanced security, and RGB LED lighting headers for system customization. Measuring a compact 211mm x 243.84mm micro-ATX form factor, the MSI PRO B650M-E motherboard fits well in smaller cases without compromising performance or expandability. Additionally, it includes 4x EZ Debug LEDs for quick troubleshooting, making it user-friendly for both beginners and experienced builders. Overall, the MSI PRO B650M-E AM5 motherboard is a versatile and future-proof foundation for any AMD Ryzen build, combining top-tier specs with MSI’s renowned durability and design.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO B650M-E | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD B650 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2 | |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Network | ||
| LAN | Realtek RTL8111H Gigabit LAN | |
| Ports & Connectors | ||

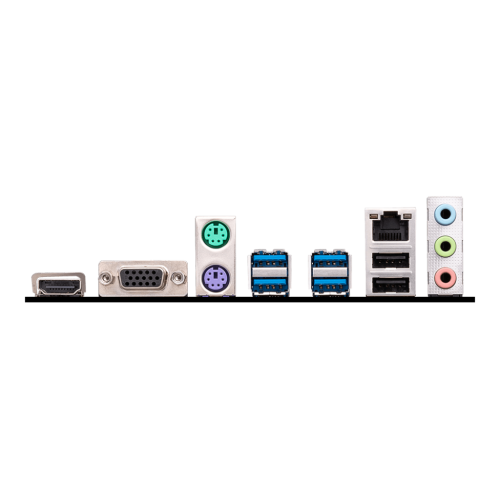

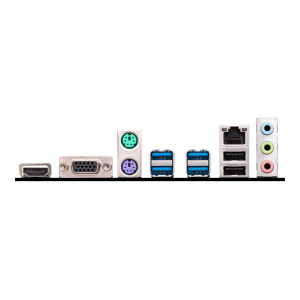

| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
|
| Form Factor | ||
| Form Factor | mATX 211mmx243.84mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 years | |
