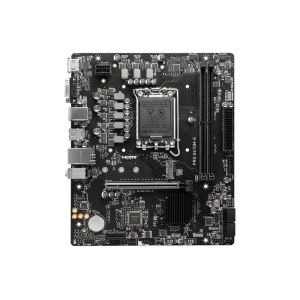

MSI PRO H610M-E DDR5 mATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR5, Max 96GB
- Graphics Output: 1x HDMI, 1x VGA
- Features: 1x M.2 slot, Realtek Gigabit LAN
11,000 ৳
Description
MSI PRO H610M-E DDR5 mATX Motherboard
The INTEL H610 motherboard supports Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors, featuring the LGA 1700 socket. It includes 2x DDR5 memory slots with a maximum capacity of 96GB and supports DDR5 5600 MHz (by JEDEC & POR). The motherboard also supports Intel® XMP 3.0 OC and dual-controller dual-channel mode, ensuring high performance and stability. With 1x HDMI™ supporting HDMI™ 1.4 with HDR and a maximum resolution of 4K 30Hz, and 1x VGA supporting VGA with a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, and 1920x1200 60Hz, this motherboard offers versatile display options. It includes 1x PCI-E x16 slot and 1x PCI-E x1 slot, with PCIe 4.0 supporting rapid data transfers. The Realtek® ALC897 Codec provides 7.1-channel high-definition audio, and the M.2_1 slot supports PCIe 3.0 x4 / SATA mode for various devices. With 4x SATA 6G and multiple USB ports, including 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), and 2x USB 5Gbps Type A (Front), connectivity is extensive. The Realtek® RTL8111H Gigabit LAN ensures steady and dependable wired internet access, and the motherboard includes various fan connectors and headers for cooling. Supporting Windows® 11 64-bit and Windows® 10 64-bit, this mATX motherboard is compact yet powerful, making it an excellent choice for a wide range of computing needs.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO H610M-E | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL H610 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 2 | |
| Supported Memory | Supports DDR5 5600 MHz (by JEDEC & POR) Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel XMP 3.0 OC |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
|
| Storage | ||
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|
| Network | ||
| LAN | 1x Realtek RTL8111H 1Gbps LAN controller |
|
| Ports & Connectors | ||

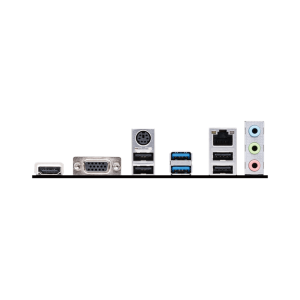

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| Form Factor | ||
| Form Factor | mATX 200mmx236.16mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x 4-pin RGB LED connector |
|
| Warranty | ||
| Warranty | 3 years | |
