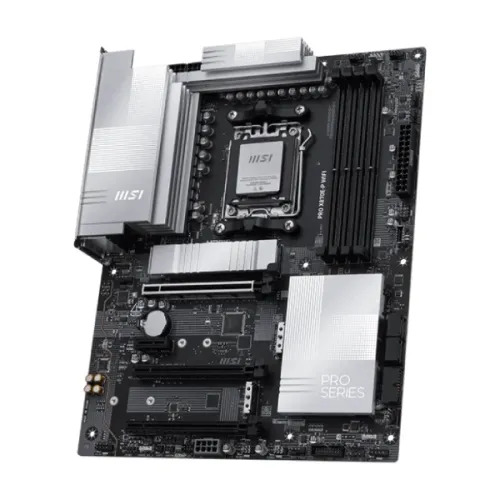

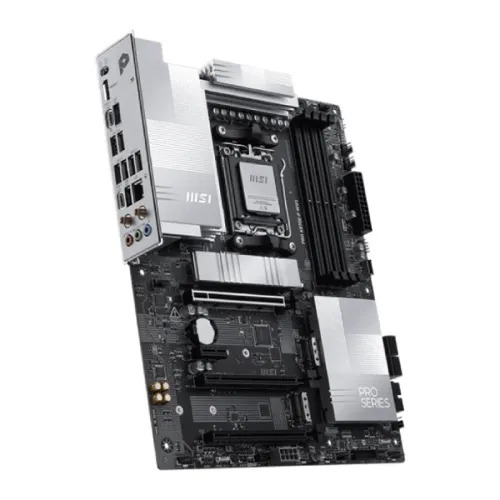

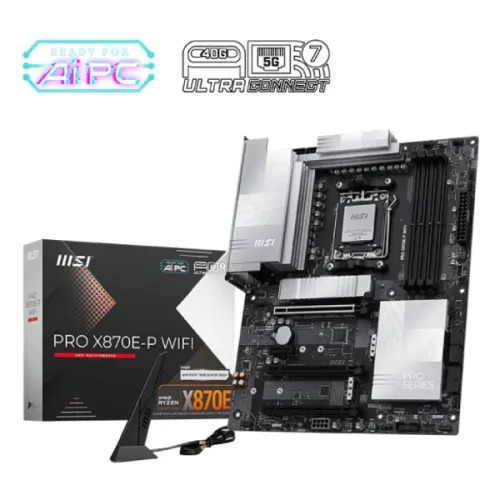

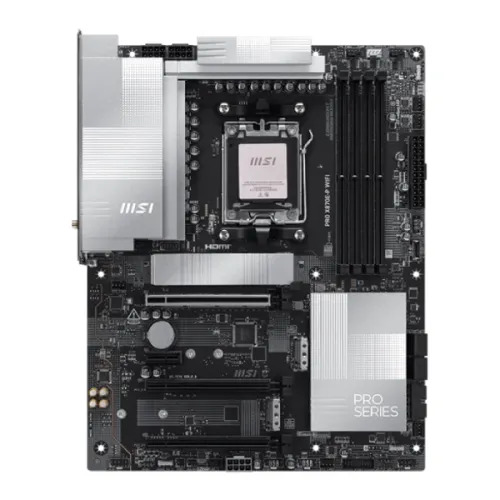

MSI PRO X870E-P WIFI AM5 ATX Motherboard
Key Features
- Supported CPU: AMD Ryzen 9000/8000/7000 Series for Socket AM5
- Supported RAM: 4x DDR5 UDIMM, Up to 8200 (OC) Mhz
- Graphics Output: 1x HDMI, 1x Type-C DisplayPort
- Features: 3x M.2 Slot, Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
43,700 ৳
Description
MSI PRO X870E-P WIFI AM5 ATX Motherboard
The MSI PRO X870E-P WIFI AM5 ATX motherboard is a high-performance choice for AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs using the AM5 socket. With four DDR5 UDIMM slots, it can handle up to 256 GB of memory at speeds ranging from DDR5 8200 to 4800 MT/s, as well as AMD EXPO, JEDEC, and memory overclocking. The MSI PRO X870E-P WIFI motherboard offers dual-channel operation, non-ECC unbuffered RAM, and a clock driver bypass option for extensive customization. Onboard graphics include HDMI 2.1 and USB4 Type-C DisplayPort 1.4 outputs, both of which support 4K resolution at 60 Hz. The MSI AM5 motherboard contains four PCIe slots, including PCI\_E1, which offers Gen 5.0 x16 support for Ryzen 9000 and 7000 series CPUs. The Realtek ALC897 codec drives the audio, enabling high-definition sound in 7.1 channels. Storage support includes three M.2 slots with PCIe 5.0 and 4.0 interfaces, as well as four SATA 6G connectors. The MSI PRO X870E-P WIFI motherboard offers M.2\_1 running at PCIe 5.0 x4 for Ryzen 9000 and 7000 series. The board supports RAID 0, 1, and 10 for SATA and RAID 0, 1, and 5 for NVMe on Ryzen 9000 CPUs. Wi-Fi 7, Bluetooth 5.4, and a Realtek 8126VB 5G LAN allow for high-speed networking. USB compatibility is broad, including USB 2.0, 5Gbps, 10Gbps, 20Gbps, and a USB4 40Gbps Type-C connector. The MSI PRO X870E-P WIFI AM5 ATX motherboard also has internal headers for CPU and system fan connectors, RGB and ARGB headers, TPM 2.0, a tuning controller connector, and EZ Debug and Memory Detection LEDs. This ATX motherboard measures 243.84 mm by 304.8 mm and runs Windows 11 64-bit, making it ideal for high-end gaming and workstation configurations that demand advanced connectivity, performance, and future-proof features.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | Pro | |
| Model | PRO X870E-P WIFI | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipsets | ||
| Chipset | AMD X870E | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors) M.2 Socket 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen 9000 series processors. |
|
| Network | ||
| LAN | Realtek 8126VB 5G LAN | |
| Wireless Module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. |
|
| Bluetooth | Supports Bluetooth 5.4, MLO, 4KQAM The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
|
| BIOS | ||
| BIOS | Flash BIOS Button | |
| Ports & Connectors | ||

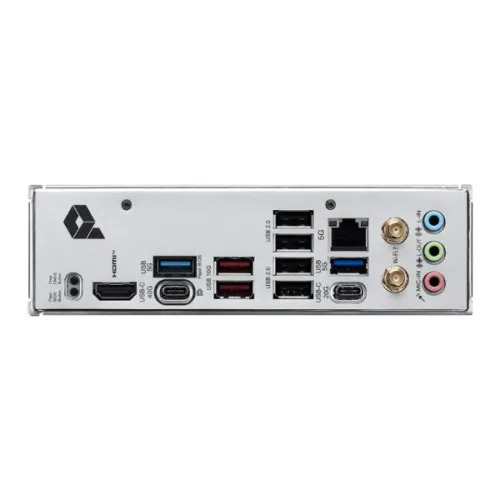

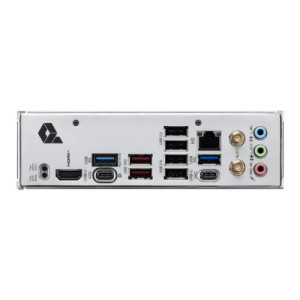

| USB Ports | 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 years | |
