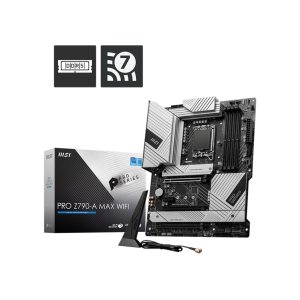

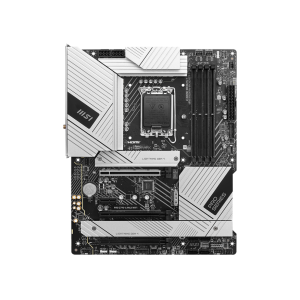

MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard
Key Features
- Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
- Supported RAM: 4x DDR5, 7800+MHz (OC), Max 256GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5G LAN with Wi-Fi 7 Solution
35,500 ৳
Description
MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard
The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is engineered to meet the demands of modern computing and gaming. It supports Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron processors, using the LGA 1700 socket for broad compatibility. With support for DDR5 memory running at Dual Channel DDR5 speeds of 7800+ MHz (overclocked), it ensures rapid data access and improved multitasking. The motherboard's 16+1+1 digital power system, 80A smart power stages, dual 8-pin CPU power connectors, Core Boost, and Memory Boost technologies deliver superior power efficiency and performance. In terms of thermal management, the motherboard features an extended heatsink, MOSFET thermal pads, choke thermal pads, and M.2 Shield Frozr, which together ensure sustained high performance during prolonged gaming sessions. Built with a high-quality 6-layer PCB made of 2oz thicker copper and server-grade components, it guarantees durability and reliability. For connectivity, it offers PCIe 5.0 slots, Lightning Gen 4 x4 M.2 slots, and USB 3.2 Gen 2x2 connectors, enabling high-speed data transfer. The Intel Turbo USB 3.2 Gen 2 provides robust and fast USB communication. The 2.5G LAN with Wi-Fi 7 Solution enhances networking capabilities for professional and multimedia users, ensuring secure, stable, and fast connections. Additionally, AUDIO BOOST 5 delivers studio-grade sound quality, providing an immersive gaming experience with clear and high-fidelity audio. The MSI PRO Z790-A MAX WIFI DDR5 ATX Motherboard is a top choice for gamers and content creators seeking superior performance and connectivity on one board.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | PRO Z790-A MAX WIFI | |
| Supported CPU | ||
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipsets | ||
| Chipset | INTEL Z790 | |
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, the maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Intel® 2.5Gbps LAN | |
| Wireless Module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on the MSFT Windows 11 plan. |
|
| Ports & Connectors | ||

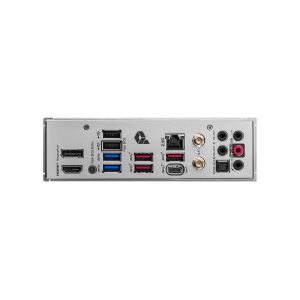

| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
