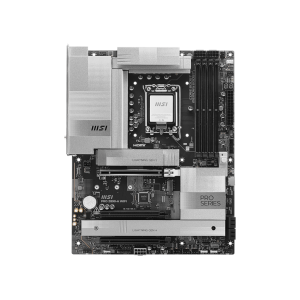

MSI PRO Z890-A WIFI DDR5 ATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
- Graphics Output: 1x HDMI, 2x Type-C DisplayPort
- Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
45,000 ৳
Description
MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard
The MSI PRO Z890-A WIFI LGA 1851 ATX Motherboard is engineered to cater to the needs of professionals and tech enthusiasts by providing reliability, efficiency, and cutting-edge technology. Compatible with the latest Intel® Core™ Ultra Processors via the LGA 1851 socket, it supports advanced CPUs and features a sleek silver design suitable for various PC builds. It includes a robust 16+1+1 Duet Rail Power System with 90A SPS, dual 8-pin CPU power connectors, and an extended heatsink design to ensure stable power delivery. Advanced features such as Core Boost and Memory Boost optimize power and memory performance. Connectivity options include Wi-Fi 7, 5G LAN, Thunderbolt 4, PCIe 5.0, M.2 Gen5 slots, and multiple USB 3.2 Gen 1 & 2 ports, making it ideal for high-performance computing and AI applications. User-friendly features like pre-installed I/O shielding, EZ M.2 Shield Frozr II, and EZ PCIe Release simplify installation, while advanced cooling solutions ensure efficient heat management. The PRO Z890-A WIFI supports up to 256GB of DDR5 memory at speeds up to 9200+ MT/s (OC), guaranteeing exceptional multitasking and future-proofing. It also includes Audio Boost 5 for high-quality sound, making it a top choice for maximizing productivity and efficiency in both professional and personal computing environments.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO Z890-A WIFI | |
| Supported CPU | ||
| CPU Type | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL Z890 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1 with FRL, the maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | ||
| Audio | Realtek® ALC1220P 7.1-Channel High-Definition Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek® 8126 5Gbps LAN |
|
| Wireless Module | Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
|
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| Ports & Connectors | ||
| USB Ports | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
|
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | 4x EZ Debug LED 1x EZ Digit Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
