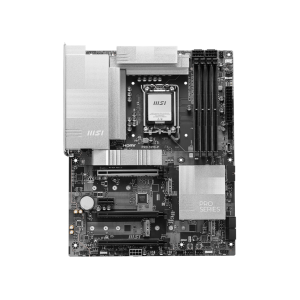

MSI PRO Z890-P DDR5 ATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
- Graphics Output: 1x HDMI, 1x Type-C DisplayPort
- Features: 4x M.2, Realtek 5Gbps LAN
36,500 ৳
Description
MSI PRO Z890-P Intel LGA 1851 DDR5 ATX Motherboard
The MSI PRO Z890-P DDR5 256GB ATX Motherboard is designed to support Intel® Core™ Ultra Processors (Series 2) using the advanced INTEL Z890 chipset and LGA 1851 socket. This motherboard supports up to 256GB of DDR5 memory with speeds up to 9200 MT/s (overclocked). It features versatile connectivity options including HDMI™ 2.1, DisplayPort 1.4, and Thunderbolt™ 4 with DisplayPort 2.1 capabilities for ultra-high-resolution outputs up to 8K. It also includes three PCI-E x16 slots (Gen PCIe 5.0 and 4.0) and one PCI-E x1 slot, alongside four M.2 slots for high-speed storage solutions. The Realtek® ALC897 Codec ensures 7.1-channel High Definition Audio. Additionally, this motherboard supports extensive RAID configurations, multiple USB ports (USB 2.0, USB 5Gbps, USB 10Gbps, and USB 20Gbps), and Realtek® 8126 5Gbps LAN for fast and reliable networking. Integrated support for Wi-Fi and Bluetooth provides strong wireless connections. With features like EZ Debug LED, TPM 2.0 support, and compatibility with Windows® 11 64-bit, the PRO Z890-P motherboard offers a powerful and versatile foundation for any high-performance system, making it an ideal choice for advanced computing needs. The ATX form factor (243.84mm x 304.8mm) ensures broad compatibility with various cases.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | PRO Z890-P | |
| Supported CPU | ||
| CPU Type | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL Z890 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| Audio | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek® 8126 5Gbps LAN | |
| Ports & Connectors | ||
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|

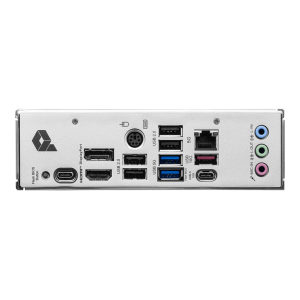

| Rear Panel I/O Ports | 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Bundled Software | Support for Windows 11 64-bit | |
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
