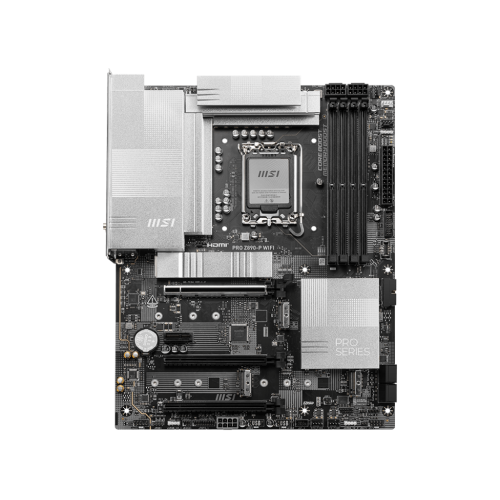

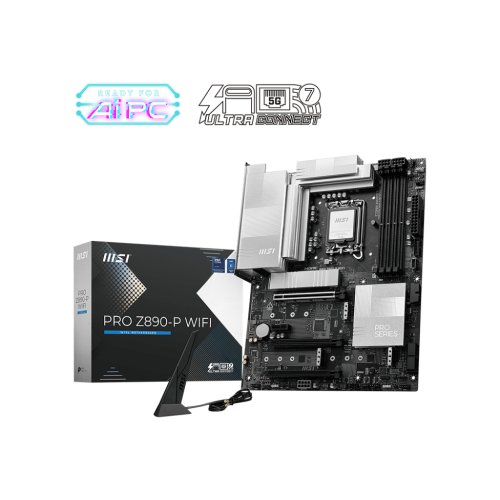

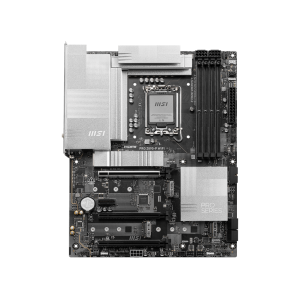

MSI PRO Z890-P WIFI DDR5 ATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
- Graphics Output: 1x HDMI, 1x Type-C DisplayPort
- Features: 4x M.2, Realtek 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
38,500 ৳
Description
MSI PRO Z890-P WIFI DDR5 ATX Motherboard
The PRO Z890-P WIFI 256GB ATX motherboard, powered by the INTEL Z890 chipset, and designed to support Intel® Core™ Ultra Processors (Series 2) with an LGA 1851 socket. This motherboard supports up to 256GB of DDR5 memory, with speeds ranging from 9200 MT/s (overclocked) to 4800 MT/s (JEDEC), ensuring exceptional performance and multitasking capabilities. It features versatile connectivity options, including HDMI™ 2.1, DisplayPort 1.4, and Thunderbolt™ 4 with DisplayPort 2.1 capabilities, providing ultra-high-resolution outputs up to 8K. Equipped with three PCI-E x16 slots and one PCI-E x1 slot, it offers robust expansion options. The Realtek® ALC897 Codec delivers 7.1-channel High Definition Audio. The motherboard supports four M.2 slots for high-speed storage, RAID configurations for both SATA and NVMe devices, and comprehensive USB connectivity with multiple USB 2.0, USB 5Gbps, USB 10Gbps, and USB 20Gbps ports. Enhanced networking is provided by Realtek® 8126 5Gbps LAN and Intel® Wi-Fi 7, along with Bluetooth® 5.4 support. Additional features include EZ Debug LED, TPM 2.0 support, and compatibility with Windows® 11 64-bit. The ATX form factor (243.84mm x 304.8mm) ensures broad compatibility with various cases, making the PRO Z890-P WIFI an ideal choice for building a powerful and reliable system.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO Z890-P WIFI | |
| Supported CPU | ||
| CPU Type | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL Z890 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| Audio | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek® 8126 5Gbps LAN | |
| Wireless Module | Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
|
| Bluetooth | Supports Bluetooth® 5.4**, MLO, 4KQAM | |
| Ports & Connectors | ||
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|

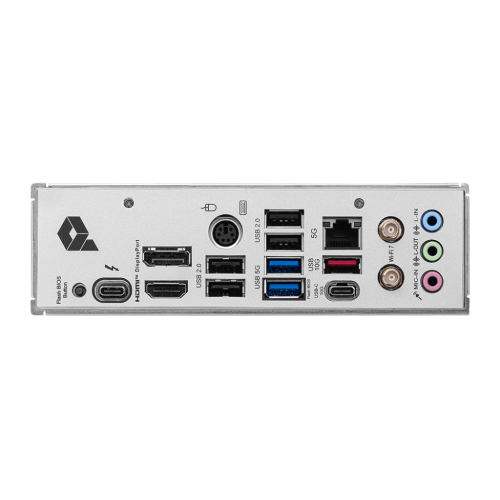

| Rear Panel I/O Ports | 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Bundled Software | Support for Windows 11 64-bit | |
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
