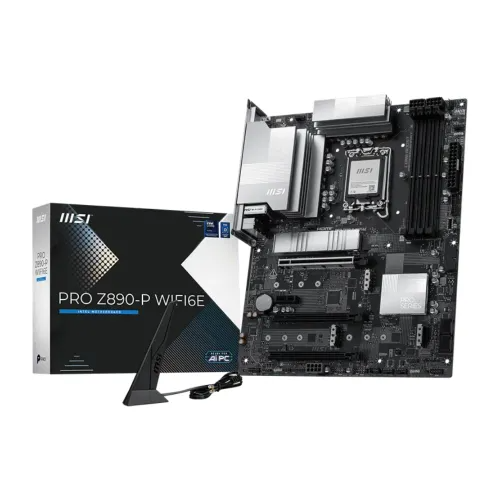

MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5 UDIMM, Up to 9200 (OC) MT/s, Max 256GB
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
- Features: 4x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
35,000 ৳
Description
MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard
The MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard delivers advanced performance for modern computing. Built with the Intel Z890 chipset, it supports Intel Core Ultra Processors (Series 2). Its ATX form factor ensures compatibility with a wide range of cases, while the Flash BIOS button simplifies updates. The Realtek ALC897 codec provides immersive 7.1-channel high-definition audio for gaming and multimedia experiences. This motherboard offers extensive expansion options. It includes three PCI-E x16 slots and one PCI-E x1 slot, with PCI-E 5.0 support for maximum speed. Four M.2 sockets allow flexible storage configurations, supporting PCIe 5.0, PCIe 4.0, and SATA modes. RAID support enhances storage reliability and performance. With DDR5 memory slots, it supports up to 256GB and speeds reaching 9200+ MT/s under overclocking conditions. Connectivity is a highlight of the MSI PRO Z890-P. It features HDMI 2.1 and DisplayPort 1.4 for graphics output. USB options include 20Gbps Type-C, 10Gbps Type-A, and multiple 5Gbps and 2.0 ports. Networking is powered by Realtek 8126 5Gbps LAN and a pre-installed Wi-Fi 6E module with Bluetooth 5.3. These features ensure smooth online gaming, streaming, and productivity. Designed for consistent performance, the motherboard integrates EZ Debug LEDs, multiple fan headers, and RGB connectors for customization. It supports Intel XMP 3.0 and dual-channel memory modes. With its robust design and advanced features, the MSI PRO Z890-P WIFI6E is a strong choice for builders seeking speed, stability, and future-ready technology.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | PRO | |
| Model | PRO Z890-P WIFI6E | |
| Supported CPU | ||
| CPU Type | Intel Core Ultra Processors (Series 2) LGA 1851 |
|
| Chipsets | ||
| Chipset | INTEL Z890 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 11x HDMI 2.1 1x DisplayPort 1.4 |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) M.2 Socket 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| Storage | ||
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek 8126 5Gbps LAN | |
| Wireless Module | Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA | |
| Ports & Connectors | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Unique Feature | LED FEATURE: 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 years | |
