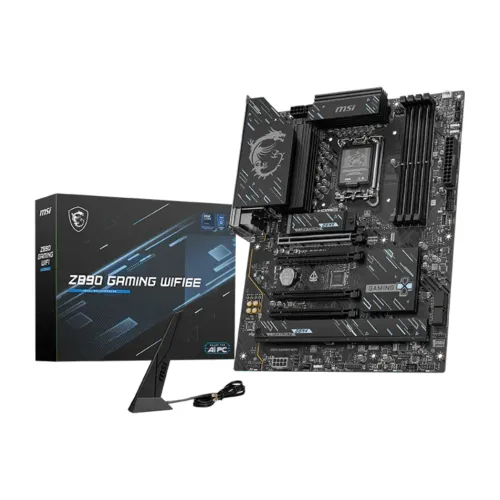

MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard
Key Features
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5 UDIMM, Up to 8800 (OC) MT/s, Max 256GB
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
- Features: 3x M.2, Realtek 8125D 2.5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
36,000 ৳
Description
MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard
The MSI Z890 GAMING WIFI6E LGA 1851 ATX Motherboard delivers powerful performance for modern gaming and productivity. Built with the Intel Z890 chipset, it supports Intel Core Ultra Processors (Series 2). Its ATX form factor ensures compatibility with a wide range of cases, while the Realtek ALC897 codec provides immersive 7.1-channel high-definition audio for an enhanced gaming experience. This motherboard offers advanced expansion with four PCI-E slots, including PCIe 5.0 support for next-generation graphics cards. Storage flexibility is guaranteed with three M.2 sockets and four SATA 6G ports, supporting RAID configurations for speed and reliability. DDR5 memory support up to 256GB ensures blazing-fast performance, with overclocking capabilities reaching 8800+ MT/s. Connectivity is a highlight, featuring HDMI 2.1, DisplayPort 1.4, multiple USB options including USB 20Gbps Type-C, and Realtek 2.5Gbps LAN. The integrated Wi-Fi 6E solution with MU-MIMO and Bluetooth 5.3 ensures seamless wireless communication. With support for dual-channel memory, Intel XMP 3.0, and TPM 2.0, this motherboard is engineered for secure and efficient computing. Designed for gamers and creators, the MSI Z890 GAMING WIFI6E combines cutting-edge speed, strong connectivity, and advanced storage support. Its EZ Debug LED and RGB lighting connectors add convenience and customization. This motherboard is a strong choice for building a high-performance PC that balances gaming, streaming, and creative workloads.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Model | Z890 GAMING WIFI6E | |
| Chipsets | ||
| Chipset | INTEL Z890 |
|
| Memory | ||
| Memory Type | DDR5 | |
| Number of Memory Slots | 4 | |
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 1x DisplayPort 1.4 |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) |
|
| Expansion Slots | ||
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
|
| Storage | ||
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek 8125D 2.5Gbps LAN | |
| Wireless Module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Bluetooth | Supports Bluetooth 5.3, FIPS, FISMA | |
| Ports & Connectors | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Others | ||
| Bundled Software | Support for Windows 11 64-bit | |
| Unique Feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |
