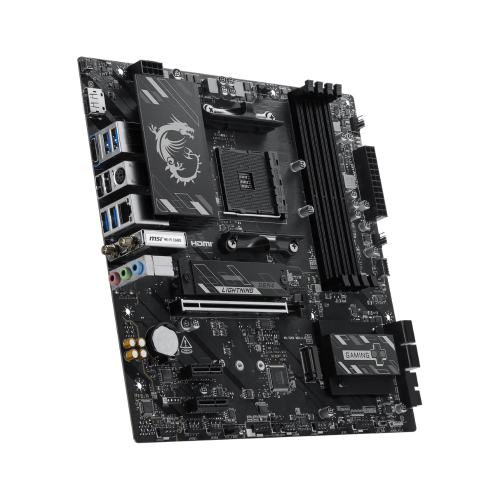

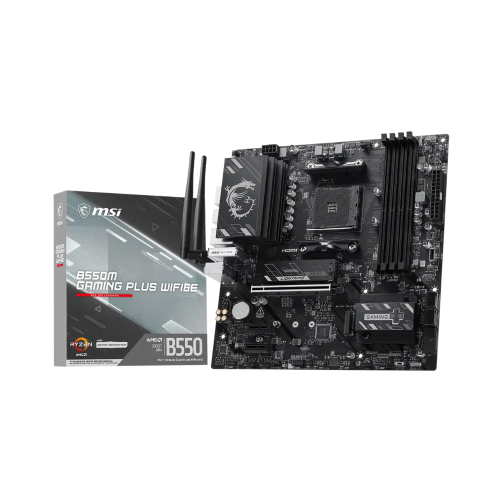

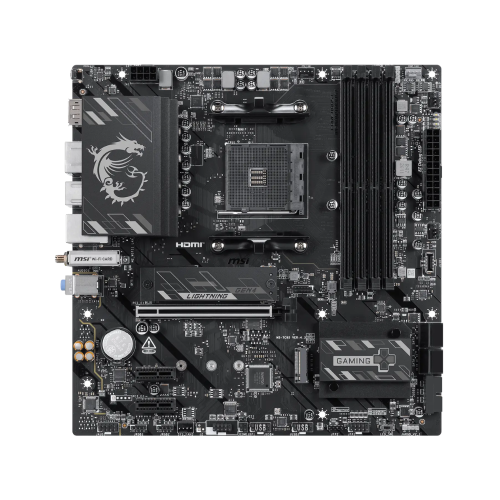

MSI B550M Gaming Plus WIFI6E AM4 AMD mATX Motherboard
Key Features
- Supported CPU: Ryzen 5000+5000 G-Series, 4000 G-Series, 3000+3000 G-Series
- Supported RAM: 4x DDR4, Max 128GB, up to 4400+ (OC) MHz
- Graphics Output: 1 x HDMI, 1x DisplayPort
- Features: 2x M.2, 1x Realtek RTL8111H 1Gbps LAN, 4x SATA 6G
17,100 ৳
Description
MSI B550M Gaming Plus WIFI6E AM4 AMD mATX Motherboard
The MSI B550M Gaming Plus WiFi 6E AM4 AMD mATX Motherboard delivers strong performance for AMD-based desktop systems. It features the AMD B550 chipset and supports Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors. The mATX form factor fits compact PC builds while offering broad hardware compatibility. Four DDR4 memory slots support up to 128GB RAM with speeds reaching 4400+ MHz through A-XMP overclocking. This MSI B550M motherboard provides excellent expansion and storage options for gaming and productivity. It includes one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots for graphics cards and expansion devices. Dual M.2 slots support PCIe Gen4 and Gen3 NVMe SSDs, while four SATA 6Gb/s ports allow additional storage drives. RAID 0, RAID 1, and RAID 10 support helps improve storage performance and data protection. Fast connectivity is another key feature of the MSI B550M Gaming Plus WiFi 6E motherboard. The pre-installed Wi-Fi 6E module supports 2.4GHz, 5GHz, and 6GHz bands with MU-MIMO technology for improved wireless performance. Bluetooth 5.3 enables quick connections with compatible devices. A Realtek RTL8111H Gigabit LAN controller provides stable wired networking for gaming, streaming, and file transfers. The motherboard also includes HDMI 2.1 and DisplayPort 1.4 outputs with support for 4K resolution at 60Hz. Realtek ALC897 7.1-channel high-definition audio delivers clear sound quality. Internal connectors include USB 5Gbps Type-C, USB Type-A, RGB headers, fan headers, TPM 2.0 support, and front panel connectors. These features make the MSI B550M Gaming Plus WiFi 6E a strong choice for users seeking reliable performance and modern connectivity.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | Pro | |
| Model | B550M Pro-VDH WiFi | |
| Supported CPU | ||
| CPU Type | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series | |
| Chipsets | ||
| Chipset | AMD B550 | |
| Memory | ||
| Memory Type | DDR4 | |
| Number of Memory Slots | 4 | |
| Supported Memory | 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4400+ MT/s • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Storage | ||
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Network | ||
| LAN | Realtek RTL8111H 1Gbps LAN |
|
| Wireless Module | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Dual-band 1T1R mode Supports MU-MIMO RX Supports 2.4GHz/ 5GHz/ 6GHz frequency band Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Bluetooth | Supports Bluetooth 5.3 | |
| Ports & Connectors | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Form Factor | ||
| Form Factor | mATX | |
| Warranty | ||
| Warranty | 3 years | |
