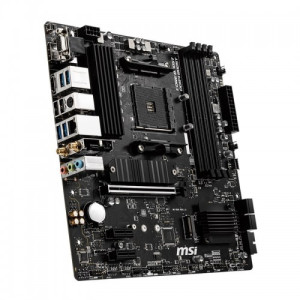

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
Key Features
- Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Gen
- Supported RAM: 4x DDR4, Max 128GB, up to 4400+ (OC) MHz
- Graphics Output: 1x VGA, 1 x HDMI, 1x DisplayPort
- Features: 2x M.2, 1x Realtek Gigabit LAN
16,200 ৳
Description
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
The MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard is a powerful and versatile choice for building a high-performance PC. It supports AMD Ryzen 5000, 4000G, and 3rd-generation processors, providing excellent compatibility for a range of powerful CPUs. The motherboard features the AMD B550 chipset, which ensures robust performance and support for the latest technologies. With its micro-ATX form factor, the motherboard is compact yet packed with features. It includes one PCIe 4.0/3.0 x16 slot for graphics cards, two PCIe 3.0 x1 slots for additional expansion cards, and two M.2 slots for fast storage solutions. The M.2 slots support PCIe 4.0/3.0 x4 and SATA 6Gb/s, accommodating 2242/2260/2280 storage devices, making it ideal for both SSDs and NVMe drives. Memory support is extensive, with dual-channel DDR4 slots that support speeds up to 4400+ MHz. This allows for high-speed memory configurations, ensuring smooth and efficient performance for demanding applications and gaming. The motherboard offers a variety of USB ports, including USB 3.2 Gen 1 5Gbps ports (one Type-C internal connector and two additional ports through the internal connector) and six USB 2.0 ports. This provides ample connectivity options for peripherals, external storage devices, and other accessories. For display outputs, the motherboard includes an HDMI 2.1 port, a DisplayPort, and a Realtek ALC892 7.1-channel audio codec, delivering high-quality audio and video output. The Realtek 8111HN Gigabit LAN controller ensures fast and reliable network connectivity. One of the standout features of the MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard is its wireless capabilities. It includes Intel Dual Band Wireless-AC 3168, supporting Wi-Fi 802.11 a/b/g/n/ac, dual-band (2.4GHz, 5GHz) up to 433 Mbps speed, and Bluetooth 4.2 for seamless wireless connections. Overall, the MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard is a comprehensive and feature-rich option for building a high-performance PC. Its support for the latest AMD processors, extensive connectivity options, and wireless capabilities make it an excellent choice for both gamers and professionals.
Specification
| Brand & Model | ||
| Brand | MSI | |
| Series | Pro | |
| Model | B550M Pro-VDH WiFi | |
| Supported CPU | ||
| CPU Type | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipsets | ||
| Chipset | AMD B550 | |
| Memory | ||
| Memory Type | Dual-channel memory architecture |
|
| Number of Memory Slots | 4x DDR4 memory slots |
|
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
|
| Audio | ||
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots M.2 Socket 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
|
| Storage | ||
| Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
|
| Network | ||
| LAN | 1x Realtek 8111HN Gigabit LAN controller |
|
| Ports & Connectors | ||
| USB Ports | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
|
| Others | ||
| Unique Feature | WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168- Supports Wi-Fi 802.11 a/b/g/n/ac, dual-band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2 |
|
| Warranty | ||
| Warranty | 3 years | |
